Hydraulic Knockout Punch Set
“Punch through with precision and power.”

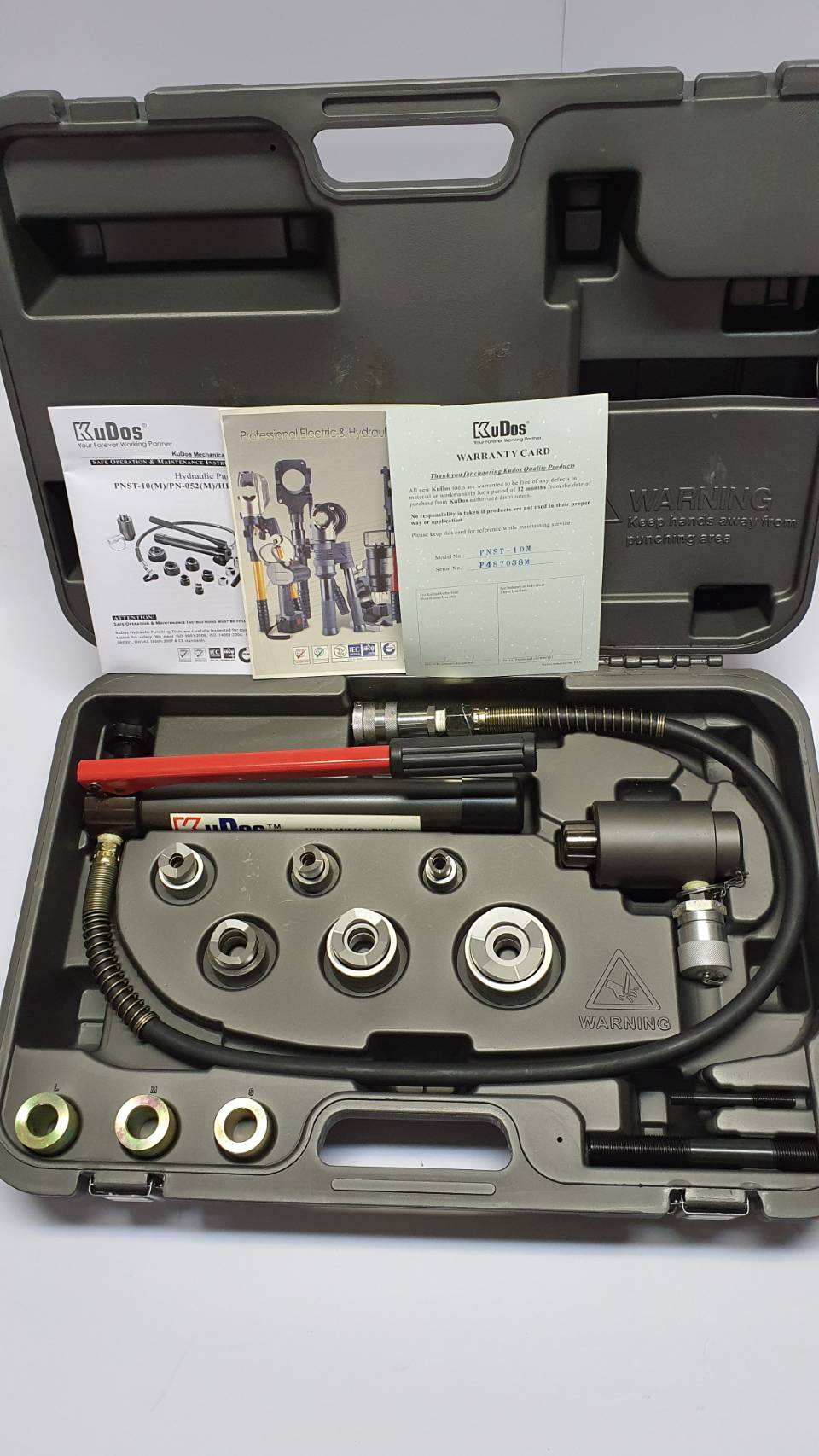

Model PNST-10 - Compact efficiency for every panel
- Punching capacity: up to 3.2 mm sheet thickness
- Punching range: 16–50 mm diameter holes
- Hydraulic-powered knockout punch set
- Compact and portable design
- Precision punches for clean hole cutting
- Quick-change punch and die system
- Lightweight and easy to transport
- Reliable for small to mid-scale panel work
- Saves time with fast, clean punching

Model PNST-10M - Manual strength, precise results
- Punching capacity: 3.2 mm sheet thickness
- Punching range: 16–50 mm diameter holes
- Manual hydraulic knockout punch set
- Manual hydraulic operation for controlled punching
- Compact set for workshop and field use
- Durable steel punches and dies
- Portable and easy to use without external pump
- Reliable for electrical and mechanical applications
- Cost-effective solution for mid-range tasks
- Quick setup and operation
- Clean, precise holes with minimal effort
- Long service life under regular use

Model PN-052 - Heavy-duty precision for thicker panels
- Punching capacity: up to 5 mm sheet thickness
- Punching range: 22–60 mm diameter holes
- Hydraulic-powered knockout punch set
- Heavy-duty punches for thicker materials
- Quick-change system for efficiency
- Compatible with high-pressure hydraulic pumps
- Handles thicker sheet metals with ease
- Reliable for industrial-scale applications
- Ensures clean, reliable holes in heavy-duty panels
- Reduces downtime with efficient hydraulic operation
- Long service life under demanding use

Model PN-052M - Manual force for heavy-duty panels
- Punching capacity: up to 5 mm sheet thickness
- Punching range: 22–60 mm diameter holes
- Manual hydraulic knockout punch set
- Manual hydraulic operation for controlled punching
- Heavy-duty punches for thicker materials
- Compact and portable design
- Reliable for workshop and field applications
- Cost-effective solution for heavy-duty tasks
- Provides consistent manual cutting force
- Clean, precise holes in thicker sheet metals
- Durable construction ensures long service life

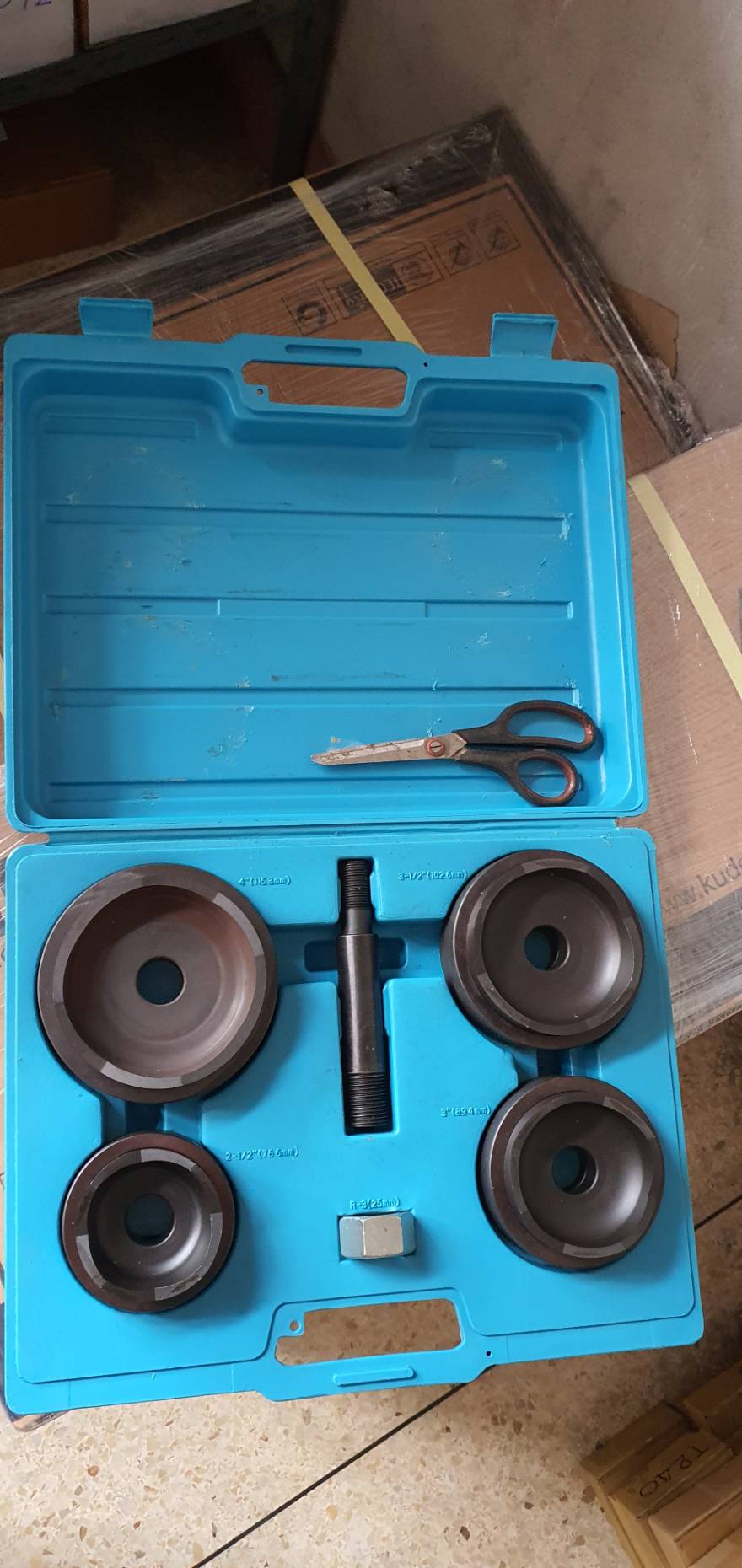

Model PN-254 - Extreme force for oversized challenges
- Punching capacity: up to 6 mm sheet thickness
- Punching range: 25–100 mm diameter holes
- Industrial-grade hydraulic knockout punch set
- Extra-heavy-duty punches for oversized holes
- Reinforced hydraulic cylinder for maximum force
- Compatible with high-capacity hydraulic pumps
- Built for industrial-scale projects
- Reliable under continuous heavy workloads
- Handles oversized holes with ease
- Long service life under demanding conditions

Hydraulic Power Puncher
“Punch through with precision and power”

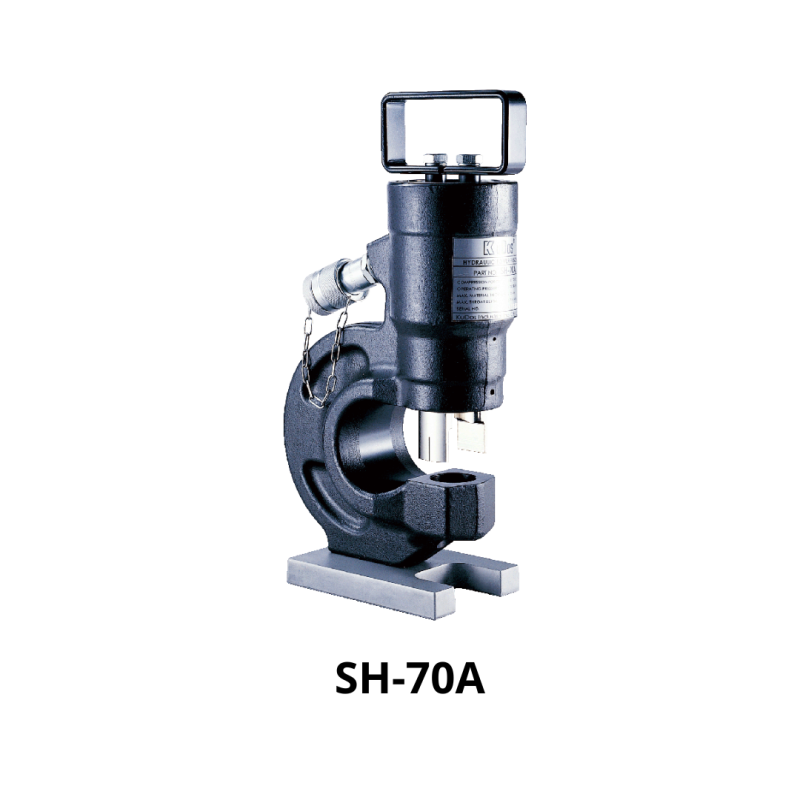

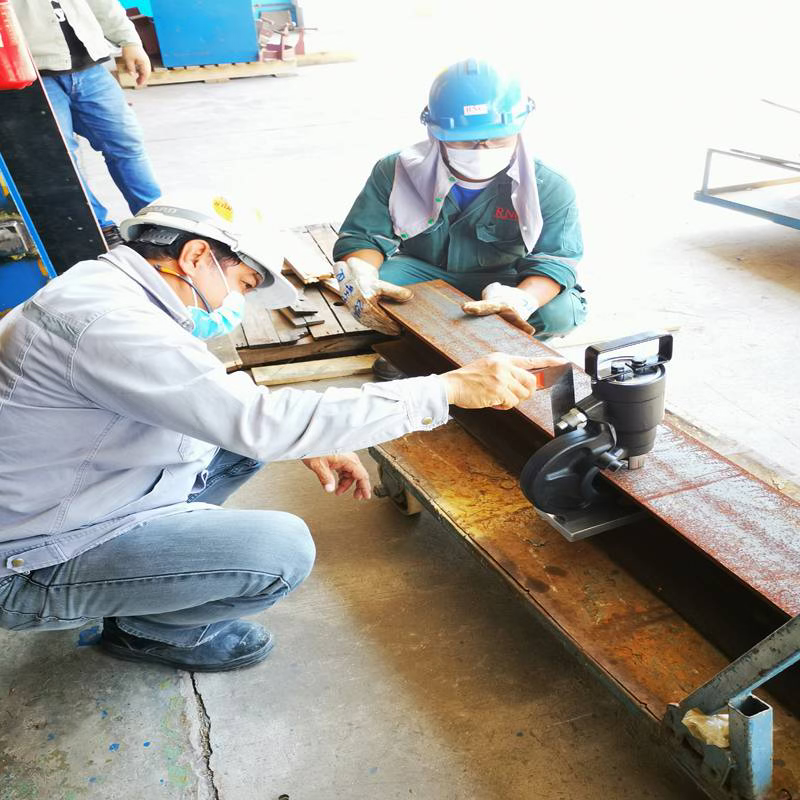

Model SH-70A - Compact force, maximum efficiency
- Punching capacity: up to 12 mm thick (mild steel)
- Punching range: 22–70 mm diameter holes
- Hydraulic-powered puncher with compact frame
- Operating pressure: 700 bar (10,000 psi)
- Precision-engineered punch and die system
- Compact design for portability and field use
- Quick setup with hydraulic pump compatibility
- Hardened steel construction for durability
- Reliable for electrical panel and sheet metal work
- Smooth hydraulic action reduces manual effort
- Saves time with fast, clean punching
- Long service life with minimal maintenance

Model SH-2070 - Heavy-duty strength for industrial panels
- Punching capacity: up to 20 mm thick (mild steel)
- Punching range: 22–70 mm diameter holes
- Heavy-duty hydraulic puncher for industrial use
- Operating pressure: 700 bar (10,000 psi)
- Reinforced hydraulic cylinder for maximum force
- Quick-change punch and die system
- Compatible with high-capacity hydraulic pumps
- Industrial-grade build for demanding jobs
- Handles thicker sheet metals with ease
- Reliable under continuous heavy workloads
- Ensures clean, reliable holes in heavy-duty panels
- Long service life under demanding conditions

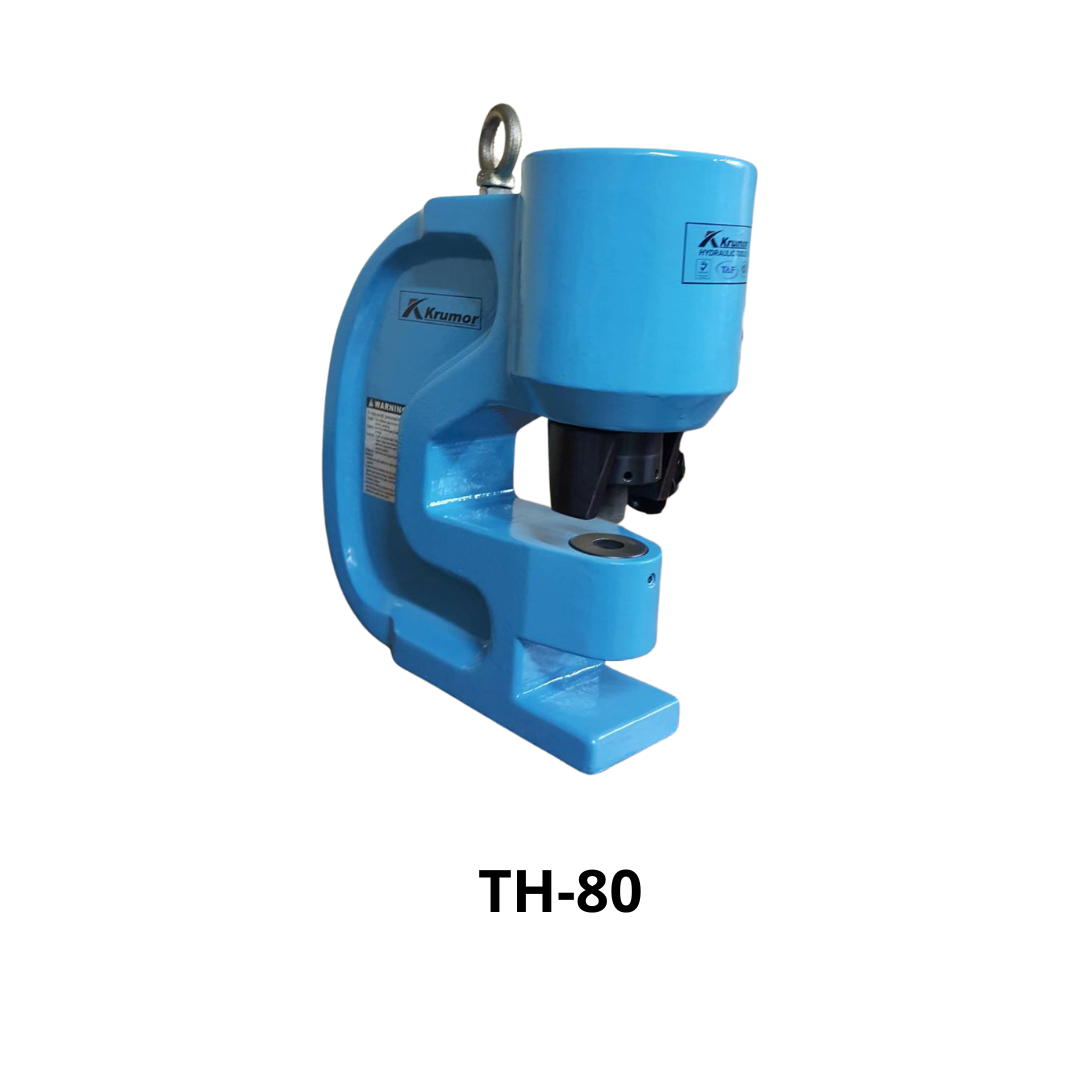

Model TH-80 - Extreme force for oversized challenges
- Punching capacity: up to 25 mm thick (mild steel)
- Punching range: 22–80 mm diameter holes
- Extra-heavy-duty hydraulic puncher
- Operating pressure: 700 bar (10,000 psi)
- Oversized punch and die system for large holes
- Reinforced frame for maximum stability
- Compatible with high-capacity hydraulic pumps
- Designed for oversized industrial applications
- Built for extreme industrial-scale projects
- Reliable under continuous heavy workloads
- Handles oversized holes with ease

Hydraulic Bus Bar Cutter & Bender
"Power, Precision, and Clean Cuts Every Time”

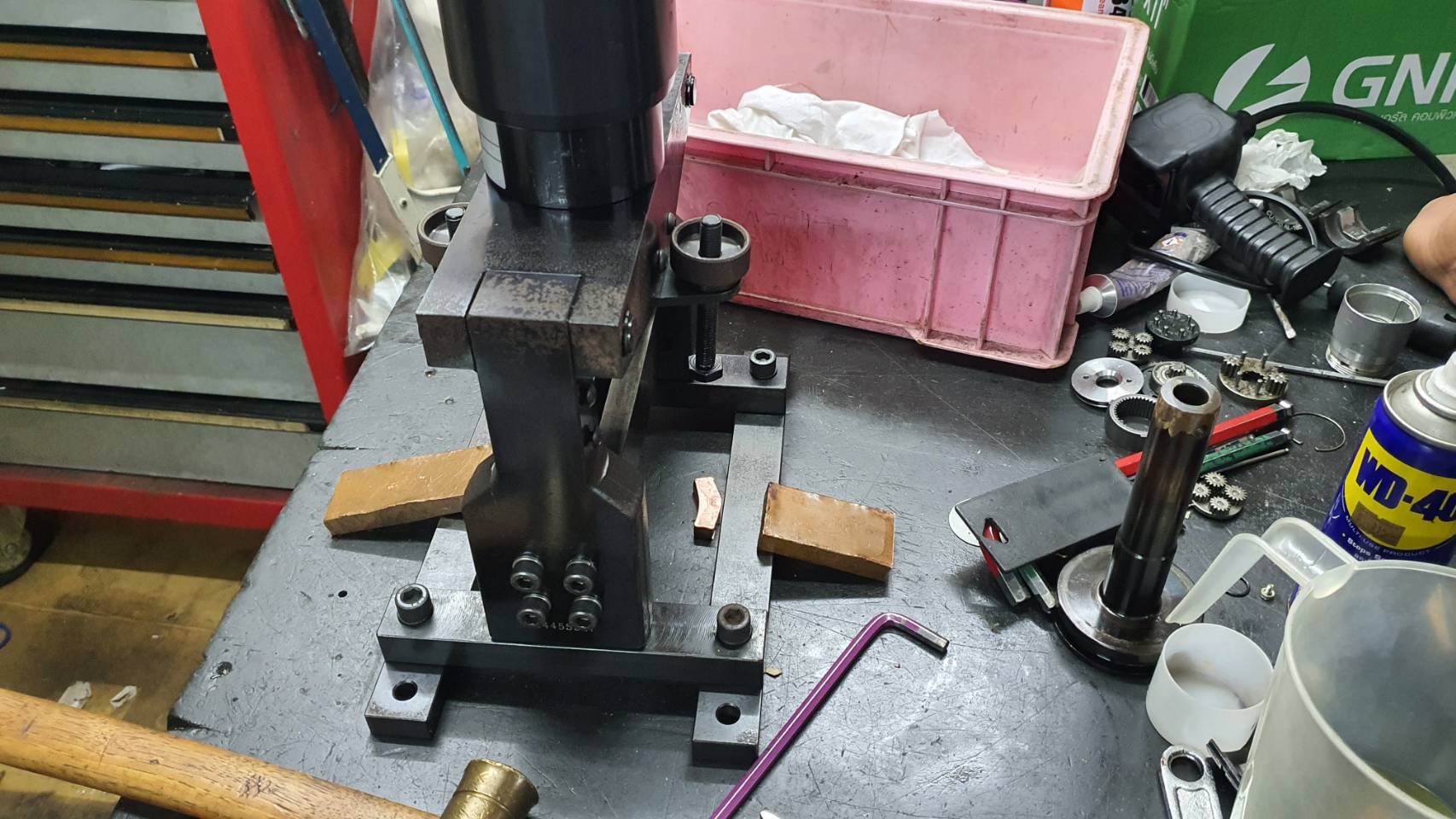

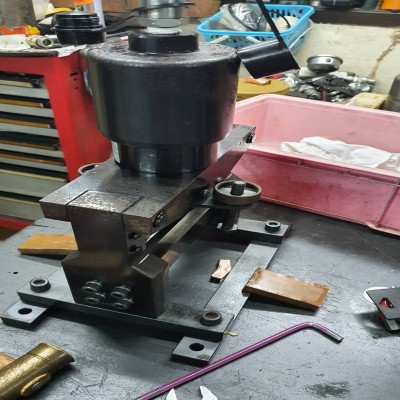

Model BC160-27 - Cut through with uncompromising force
- Cutting Capacity: 160 mm×12 mm (Copper/Aluminum)
- Cutting Force: 29 tons / 258 kN
- Operation: Hydraulic single-acting
- Weight: Approx. ~25 kg
- Compact frame for workshop use
- Precision-engineered blades for burr-free cuts
- Heavy-duty hydraulic for consistent performance
- Ergonomic design for safe handling
- Compatible with manual and electric pumps
- Durable steel construction for long service life
- High cutting force for copper/aluminum bus bars
- Compact design suitable for workshop applications
- Minimal maintenance required
- Reliable for repetitive industrial use
- Saves time compared to manual cutting methods
- Produces clean, professional-grade cuts
- Enhances safety without sparks and sharp edges
- Boosts productivity in electrical panel fabrication

Model HYBN-120 - Portable precision for efficient bus bar bending
- Bending capacity: 120 mm×12 mm (copper/aluminum)
- Force: 24.13 tons / 214.7 kN
- Operation: Hydraulic (700 bar / 10,000 psi)
- Weight: Approx. 15.2 kg - 15.8 kg
- Lightweight, portable design
- Hydraulic mechanism for consistent performance
- Ergonomic, portable design for easy handling
- Compatible with manual and electric pumps
- Rugged steel construction for durability
- Portable and lightweight for on-site use
- Low maintenance requirements
- Reliable for repetitive industrial applications
- Provides clean cuts that reduce finishing work
- Enhances efficiency in electrical installation projects

Hydraulic Metal Forming & Cutting Machine
"Efficiency and Precision in One”

Model FM-30 - Two functions, one powerhouse
- Forming Capacity: 12 mm thick copper/alum bus bar
- Cutting Capacity: Precise cutting of angle steel
- Force: 23 t for V-notching/cut and 17 t for bending
- Operation: Hydraulic (manual or electric pump)
- Weight: Approx. 50 - 51.7 kg
- 2-in-1 forming and cutting capability for bus bars
- Hydraulic mechanism for smooth, efficient operation
- Quick-change tooling system for fast setup
- Heavy-duty steel construction for durability
- Compatible with standard hydraulic pumps
- High hydraulic force for thick angle steel
- Saves workshop space by integrating two functions
- Reliable performance for repetitive industrial use
- Portable design for on-site and workshop use
- Enhances productivity in electrical panel fabrication
- Long service life ensures cost efficiency
