Pipe Cold Cutting & Flange Facer Machine / Product / Pipe Cold Cutting & Flange Facer Machine
Pipe Cold Cutting & Flange Facer Machine

pipe-cold-cutting-and-beveling-machine OD of pipe from 3/8" upto 60"

Pipe Cold Cutting

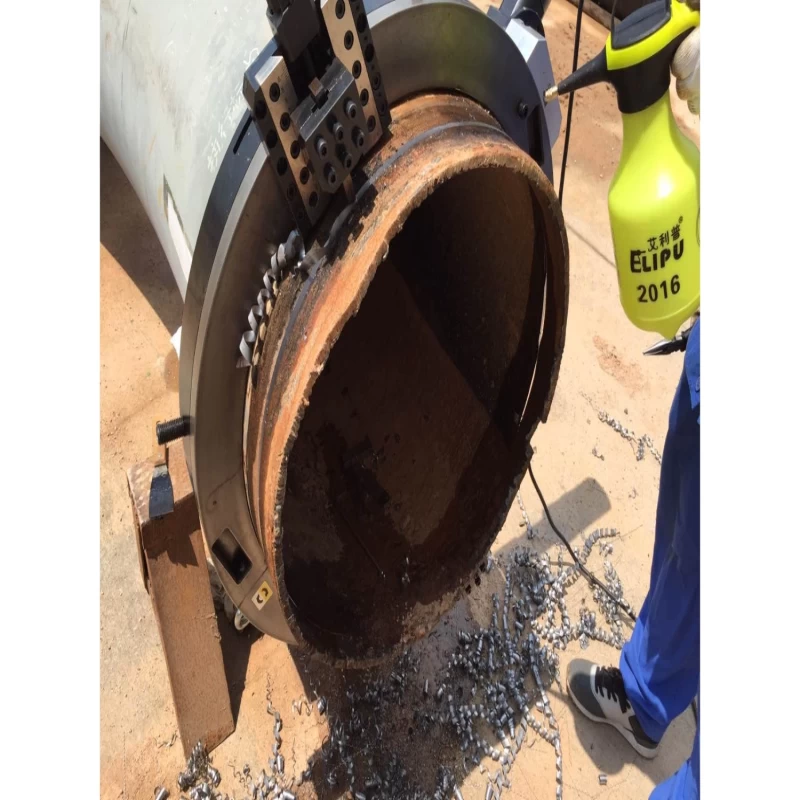

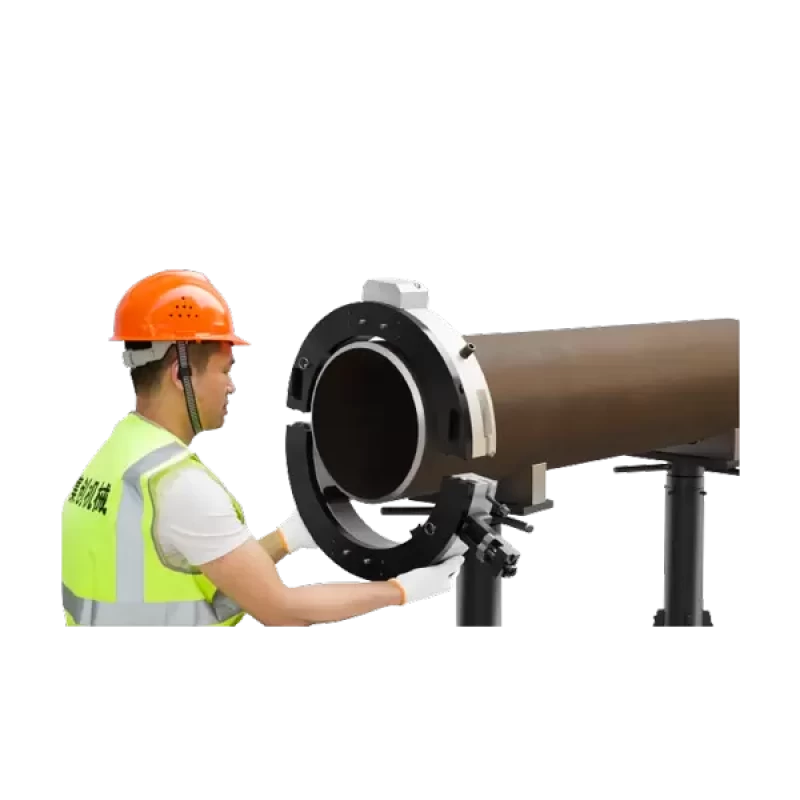

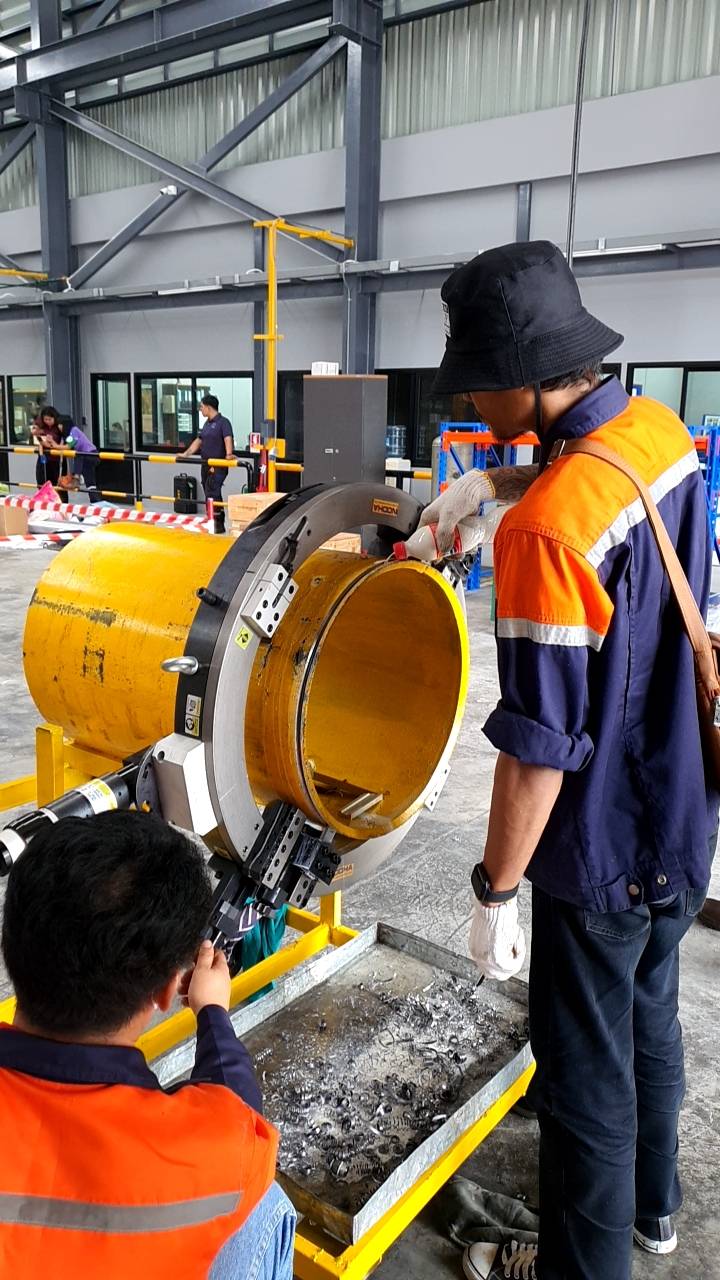

Air type Series split frame pipe cutting and beveling machine

Air motor Specification:
Rotation speed: 226RPM;
Torque:117Nm;
Power:3.77HP

Advantage: Explosion-proof;
Stable performance;
Simple stucture makes easy to maintenance

Product Certificate, Made in China
Product Warranty

Detail specific

ODP series Certificate

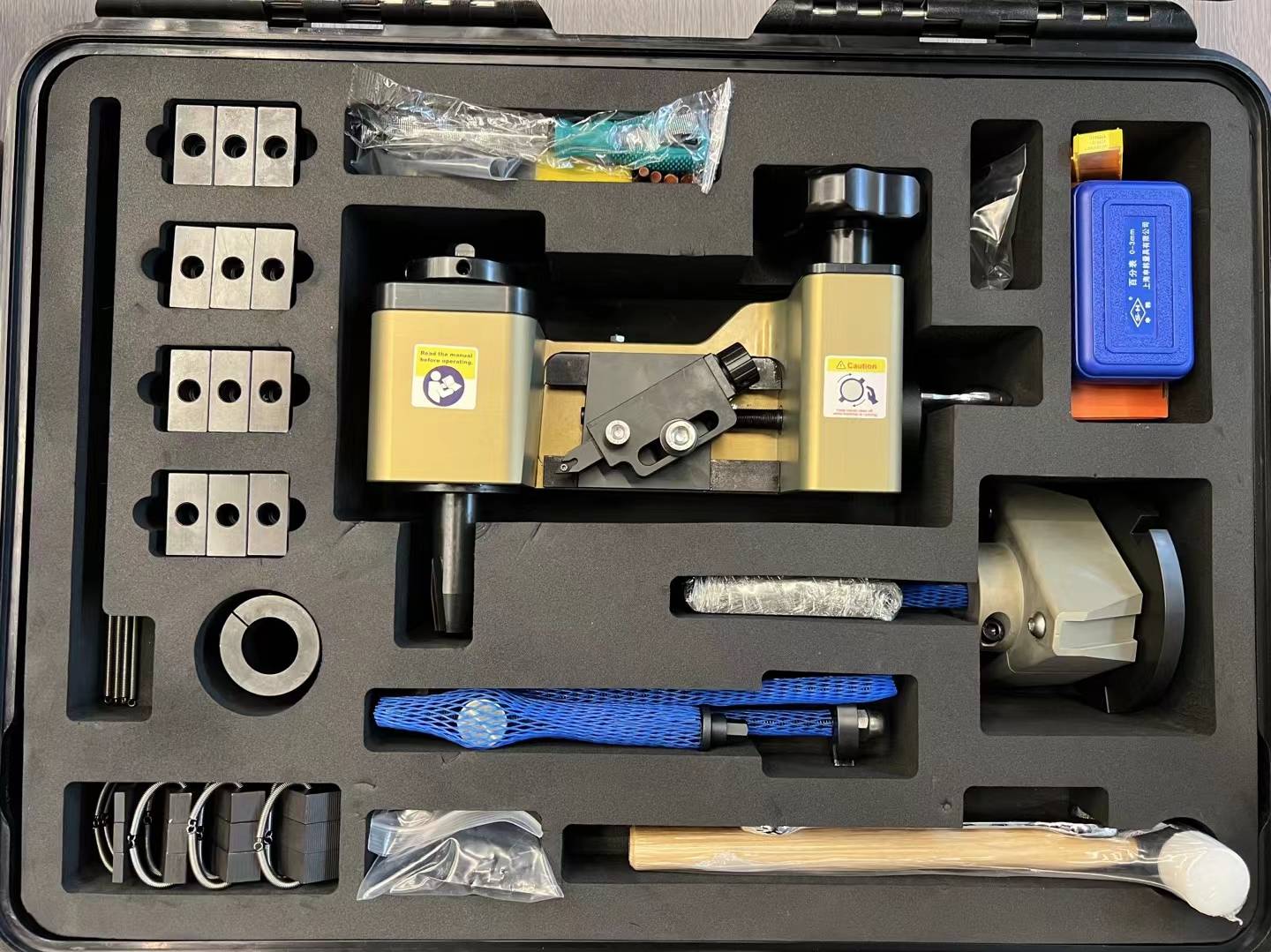

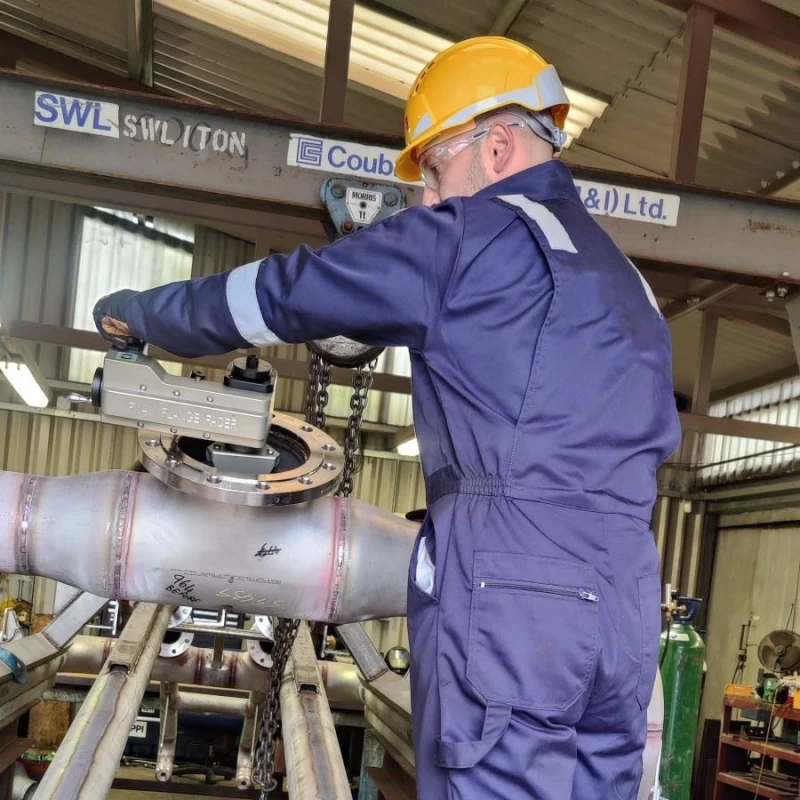

FI14M MINI flange facer
1.07″ upto 14″ (27.2-355.6mm)

MINI flange facer,
FI14M Model 1.07″ upto 14″ (27.2-355.6mm)

FI14M ideal for small size flange rush repair job, operated by manpower, no need air or electric.

Cover the range from 1.07″ upto 14″ (27.2-355.6mm)

Complete with 3 size of mounting chassis, ensure the stability during machining

-Internally mounted and Externally mounted

-Manually, pneumatic, electric or hydraulic for option

-Continuous groove facing feed

-Apply to ASME Standard

-Portable, durable plastic/metal case

Product Certificate, Made in China
Product Warranty

Catalog

OD-Mounted flange facing machine
2″ upto 17.72″ (50-450mm)

OD-Mounted flange facing machine
FE12 Model 0″ upto 12″ (0-305mm)

FE12 has electric and pneumatic type for option. Air type adopts our own air motor, which used on clamshell for 20 years. Electric type adopts 1Kw Panasonic servo motor.

Facing range: 0″ upto 12″ (0-305mm)

Clamping range: 2″ upto 17.72″ (50-450mm)

Tool post Travel: 1.57″ (40mm)

No.of Feed setting: 2 (Fine and Coarse)




-Internally mounted and Externally mounted

-Manually, pneumatic, electric or hydraulic for option

-Continuous groove facing feed

-Apply to ASME Standard

-Portable, durable plastic/metal case

Product Certificate, Made in China
Product Warranty

Catalog Flange Facer

Flange facing machine
4.73"-26" (120-660mm)
Swivel tool post
Light weight & Rigidity Body 7075 Alu.

ID-Mounted flange facing machine
F126 Model 4.73"-26" (120-660mm)


FI26
 has electric and pneumatic type for option. Air type adopts 1.47HP our own air motor, which used on clamshell for 20 years. Electric type adopts 1Kw Panasonic servo motor.

Facing range: 4.73″ upto 26″ (120-660mm)

Clamping range: 3.55″ upto 26″ (90-660mm)

Tool post Travel: 1.97″ (50mm)

No.of Feed setting: 2 (Fine and Coarse)

-Internally mounted and Externally mounted

-Manually, pneumatic, electric or hydraulic for option

-Continuous groove facing feed

-Apply to ASME Standard

-Portable, durable plastic/metal case

Product Certificate, Made in China
Product Warranty


F126 specific

ID-Mounted flange facing machine
6″ upto 40″ (153-1000mm)
Tool post Travel: 4″ (102mm)

ID-Mounted flange facing machine
FI40 Model 6″ upto 40″ (153-1000mm)

FI40 has electric and pneumatic type for option. Air type adopts 2.3HP MODEC air motor. Electric type adopts 1.5Kw Panasonic servo motor.

Facing range: 6″ upto 40″ (153-1000mm)

Clamping range: 5.71″ upto 35.82″ (145-910mm)

Tool post Travel: 4″ (102mm)

No.of Feed setting: 6



-Internally mounted and Externally mounted

-Manually, pneumatic, electric or hydraulic for option

-Continuous groove facing feed

-Apply to ASME Standard

-Portable, durable plastic/metal case

Product Certificate, Made in China
Product Warranty

Catalog Flange Facer

ID-Mounted flange facing machine
12.6″ upto 60″ (320-1500mm)

ID-Mounted flange facing machine
FI160 Model 12.6″ upto 60″ (320-1500mm)

FI160 has electric and pneumatic type for option. Air type adopts 4HP MODEC air motor. Electric type adopts 3Kw Panasonic servo motor.

Facing range: 12.6″ upto 60″ (320-1500mm)

Clamping range: 11.4″ upto 57.08″ (290-1450mm)

Tool post Travel: 4″ (102mm)

No.of Feed setting: 6



-Internally mounted and Externally mounted

-Manually, pneumatic, electric or hydraulic for option

-Continuous groove facing feed

-Apply to ASME Standard

-Portable, durable plastic/metal case

Product Certificate, Made in China
Product Warranty

Catalog Flange Facer
