TORQUE WRENCH
Hydraulic Square Drive Torque Wrench
(ประแจปอนด์ไฮโดรลิคหัวขับสี่เหลี่ยม)
- High-power drive for sockets & Allen keys
- Dual pawl mechanism with heavy-duty reliability
- 360° reaction arm for flexible use in any position
- One-way ratchet for true hands-free, multi-tool use
- Aluminum-titanium alloy+high-strength steel housing
- Anti-rust finish surface treatment for durability
- Compact radius-Drop Hole preventing overpressure
- Torquet precision: ±3% accuracy, 100% repeatability
- Drive range: 3/4"-2 1/2" square
- 24/7 support + free on-site survey
- Repair service & calibration certificate included
- E.C.I.T.B. industry training available
- Certificated, Made in U.S.A.
- Product warranty & insurance coverage
| MODEL | Bolt size (mm) |
Max. torque | |
| lbf.ft | Nm. | ||
| KU-1 | 16 ~ 36 | 1409 | 1911 |
| KU-3 | 22 ~ 48 | 3328 | 4512 |
| KU-5 | 27 ~ 56 | 5672 | 7690 |
| KU-8 | 30 ~ 64 | 6951 | 10780 |
| KU-10 | 36 ~ 72 | 11688 | 15847 |
| KU-20 | 42 ~ 90 | 20049 | 27183 |
| KU-25 | 48 ~ 100 | 25611 | 34725 |
| KU-30 | 64 ~ 120 | 37632 | 51022 |

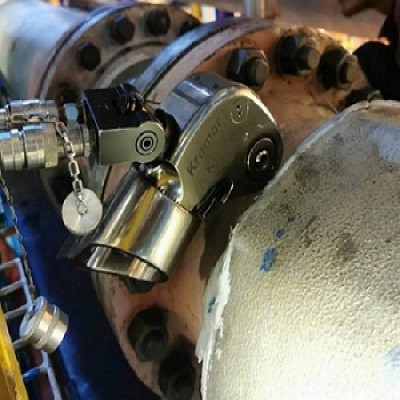

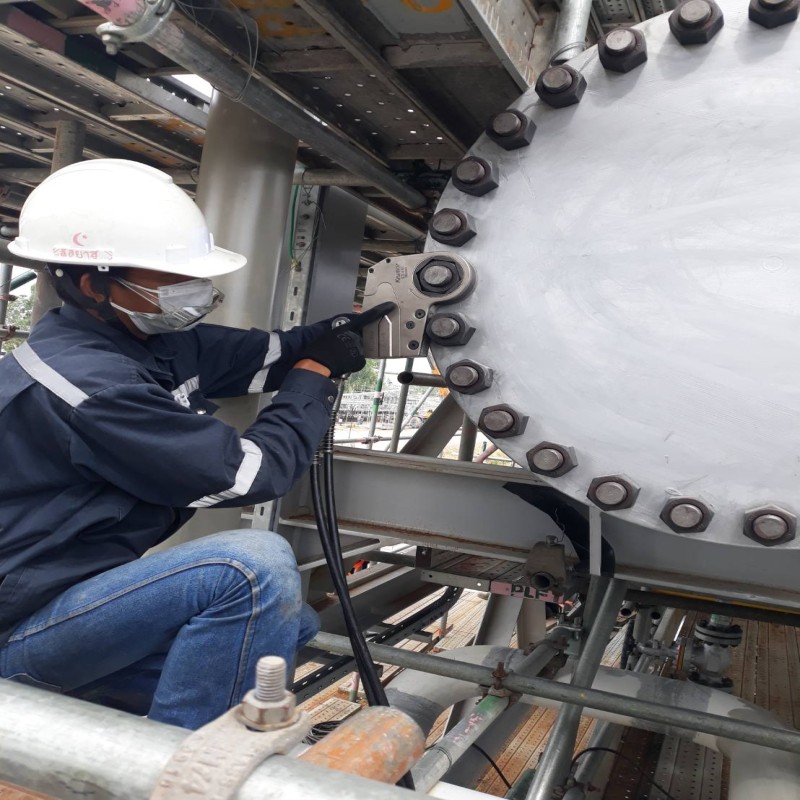

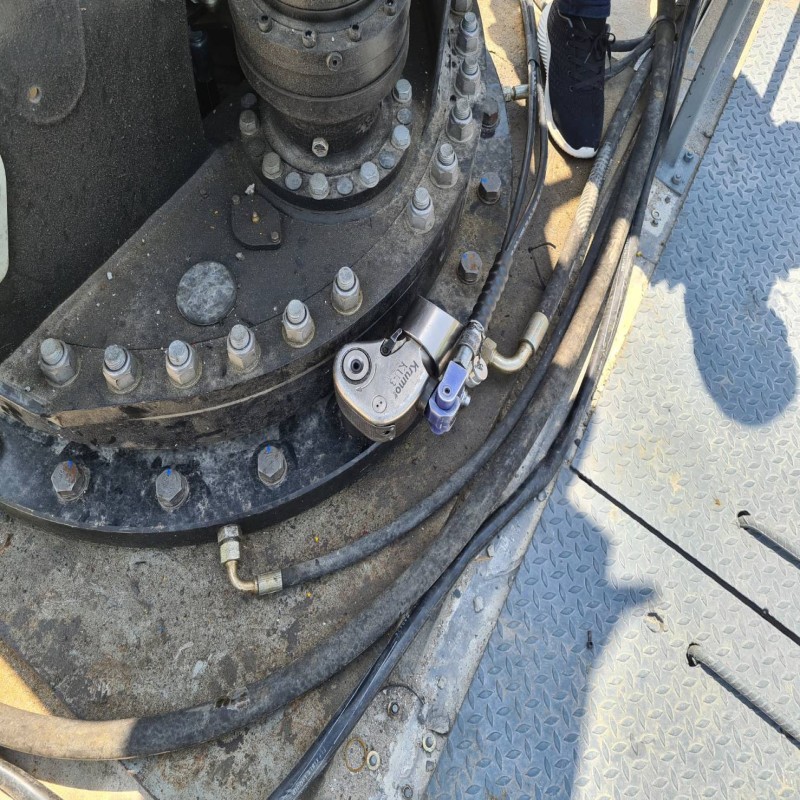

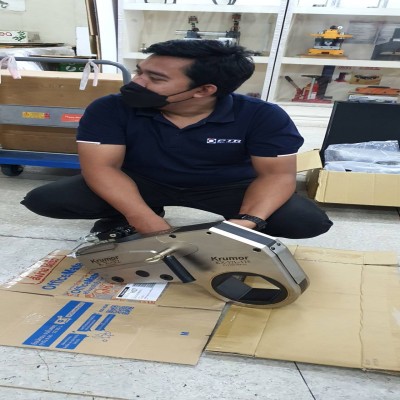

KU SERIES
Low Profile Hydraulic Torque Wrench
(ประแจทอร์คไฮดรอลิกแบบโปรไฟล์ต่ำ)
- Double-acting hex cassette for power & precision
- Slim, low-profile design with narrow nose radius
- Integrated reaction arm for easy positioning
- Bronze bushing for anti-galling durability
- Safety "Drop Hole" protects against overpressure
- Torque accuracy: ±3% precision, consistent output
- 24/7 support + free on-site survey
- Repair service & calibration certificate included
- E.C.I.T.B. industry training available
- Certificated, Made in U.S.A.
- Product warranty & insurance coverage
| MODEL | Hex. size (mm) |
Max. torque | |
| lbf.ft | Nm. | ||
| KX-2 | 30-60 | 2178 | 2994 |
| KX-4 | 41-80 | 4732 | 6504 |
| KX-8 | 50-105 | 10689 | 14692 |
| KX-16 | 70-115 | 16854 | 23165 |
| KX-32 | 80-155 | 37566 | 51632 |
Hydraulic Torque Pump
#TPE-230 Compact, portable for medium-duty jobs
#TPE-554W Multi-tool ready, built for long operations
#WPE-554 Pneumatic powerhouse for industrial use
TPE-230 - Electric Hydraulic Torque Pump
- 1.1 kW motor, 6L reservoir, 29 kg weight
- Flow: 1.6 L/min @ 350 bar, 0.8 L/min @ 700 bar
- Compact design for easy handling
- Reliable performance under consistent loads
- Precise pressure control for accuracy
- Portable & efficient for medium-duty jobs
- Balanced power with user-friendly operation

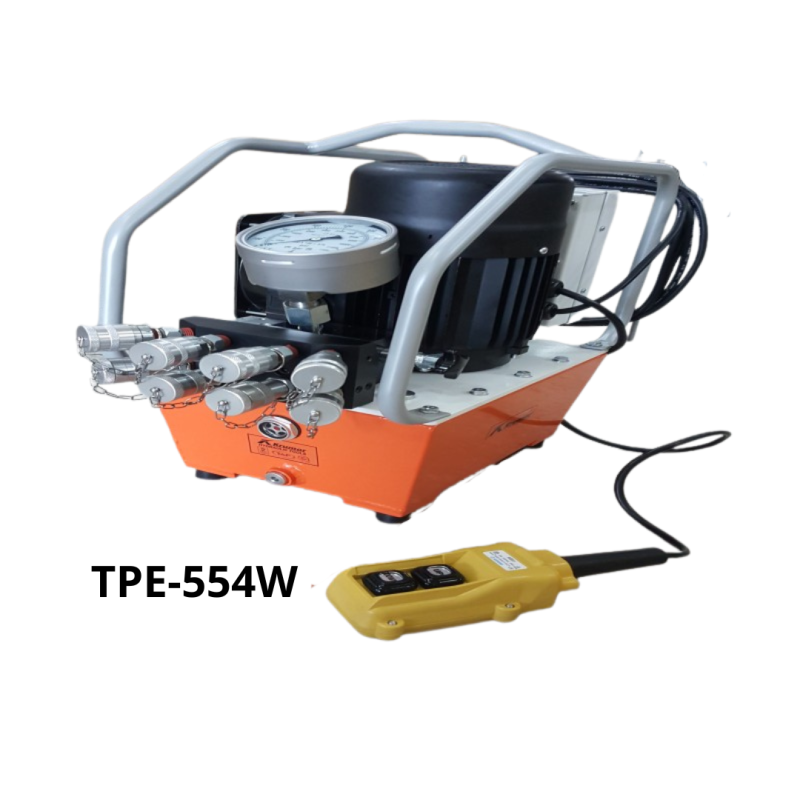

TPE-554W - Electric Hydraulic Torque Pump
- 0.84 kW motor, 7L reservoir, 32 kg weight
- Flow: 1.2 L/min @ 350 bar, 0.9 L/min @ 700 bar
- Auto motor stop (30 s idle)
- Safety restart system
- Heat exchanger cooling system for extended cycles
- Eight 1/4" ports for multi-tool synchronization
- Safety-focused design with automatic protection
- Reduced downtime & improved efficiency
- Ideal for long and demanding operations
WPE-554 - Air-Hydraulic Torque Pump
- 4 HP fan motor, 8L reservoir
- Flow: 1.1 L/min @ 350 bar, 0.9 L/min @ 700 bar
- Air supply: 1.4 m³/min @ 6 bar, 3000 RPM
- 2-stage air pump
- 5m pneumatic remote control
- Rugged pneumatic design for industrial use
- Remote operation capability for convenience
- Consistent torque delivery under heavy duty
- Reliable in demanding industrial settings
- Perfect for jobs where electric pumps are less practical
| MODEL | Motor (kw) |
Flow rate | Usable oil (liter) |
Weight (kg) |
|
| 350 Bar (l/m) |
700 Bar (l/m) |
||||
| TPE-230 | 1.1 | 1.6 | 0.8 | 6 | 29 |
| TPE-554W | 0.84 | 1.2 | 0.9 | 7 | 32 |
| MODEL | Air supply | RPM | Flow rate |
Oil tank
(liter)
|
|
|
350 Bar
|
700 Bar
|
||||
|
WPE-554
|
1.4 m3/min
@ 6 BAR
|
3000
|
1.1
|
0.9
|
8 |
TORQUE PUMP
