Mechanical Flange Alignment Tool
#M1TFE - Portable for small-medium flange alignment
#M4TFE - Heavy-duty for large flange alignment

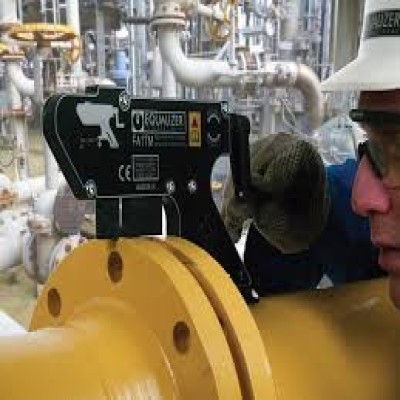

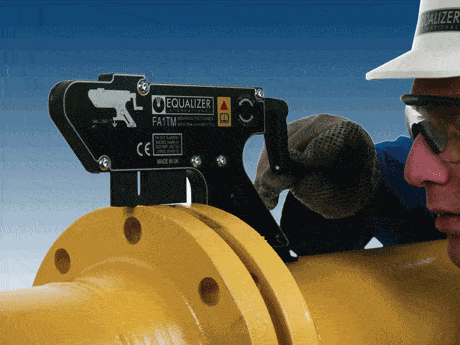

#M1TFE - Mechanical Flange Alignment Tool
- 1‑ton force, min. bolt Ø 16 mm (0.63")
- Compatible with ANSI,API, BS & DIN flanges
- No slings, hooks, and lifting equipment needed
- Suitable for small to medium flange diameters
- Works in both horizontal and vertical positions
- Supplied in a rugged case for storage & transport
- Designed for efficiency & reliability
- Certified quality, Made in U.S.A.
- Warranty & insurance included

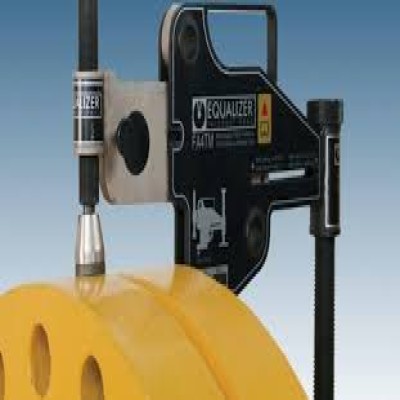

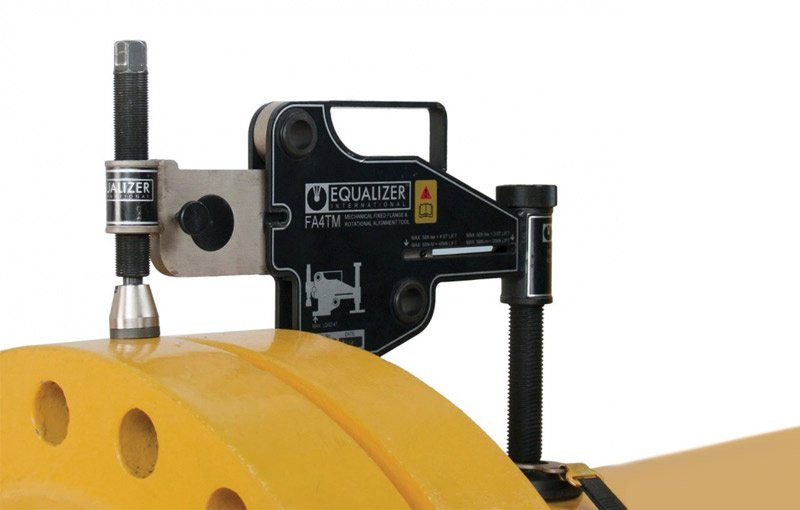

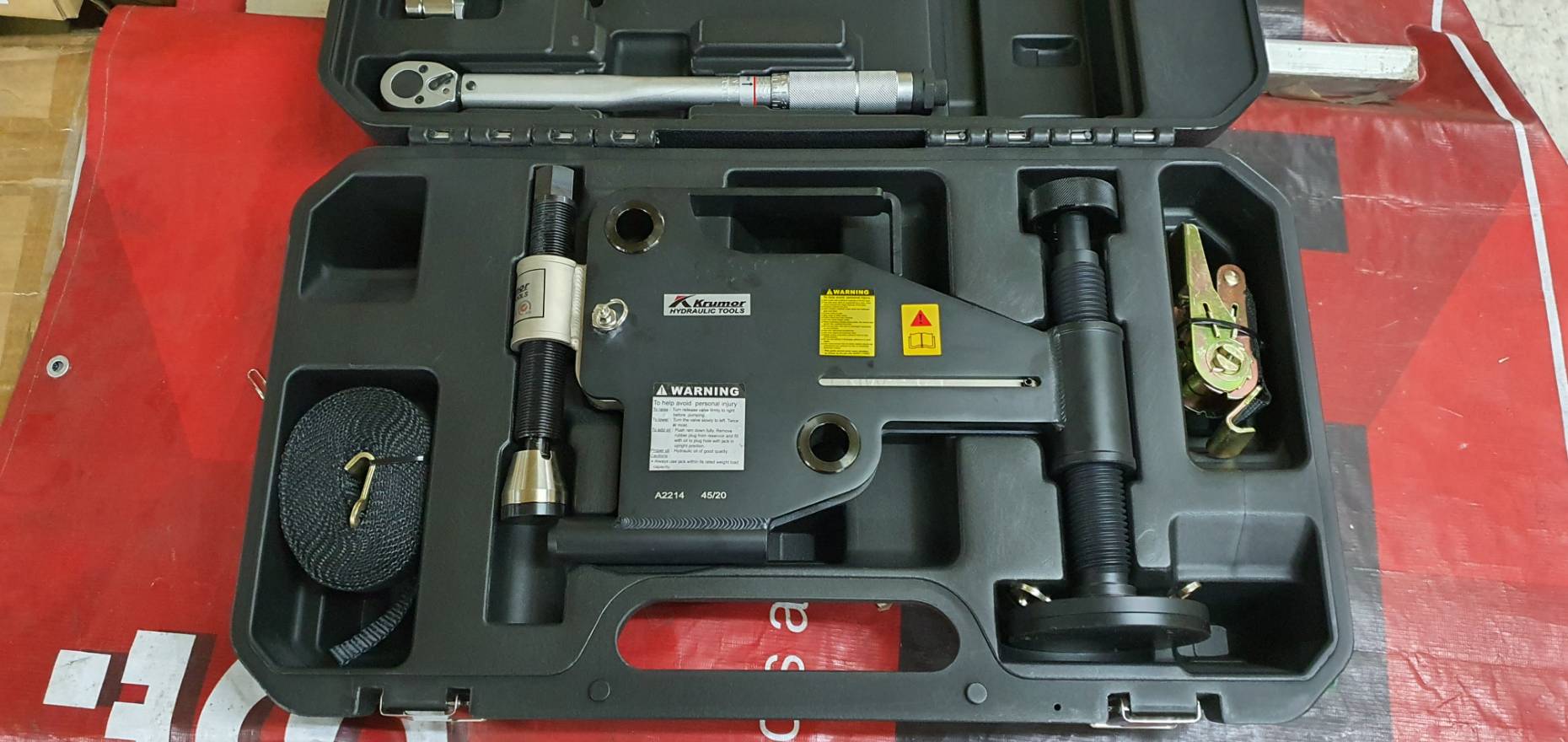

#M4TFE - Mechanical Flange Alignment Tool + Hand Torque Wrench
- 4‑ton force, min. bolt Ø 25 mm (1")
- Compatible with ANSI,API, BS & DIN flanges
- No slings, hooks, and lifting equipment needed
- Handles both rotational and linear misalignment
- Robust construction for industrial environments
- High capacity for demanding industrial applications
- Certified quality, Made in U.S.A.
- Warranty & insurance included

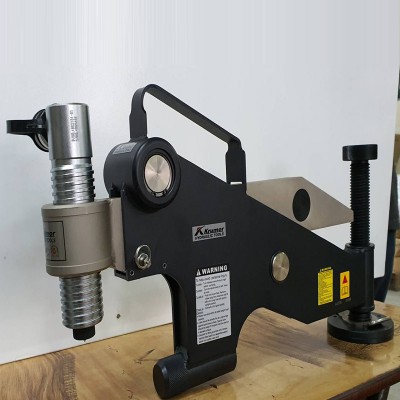

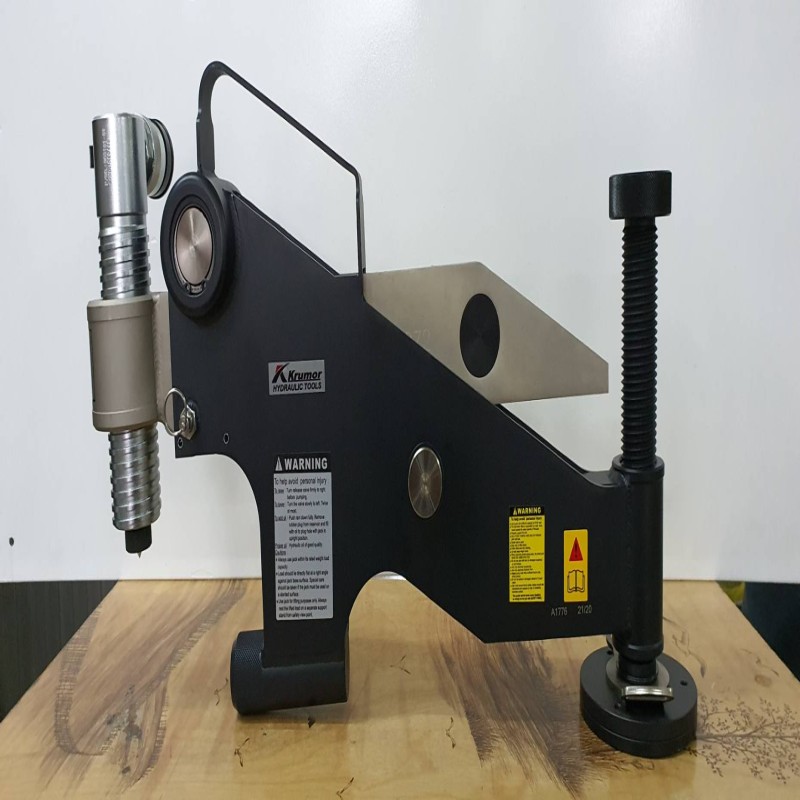

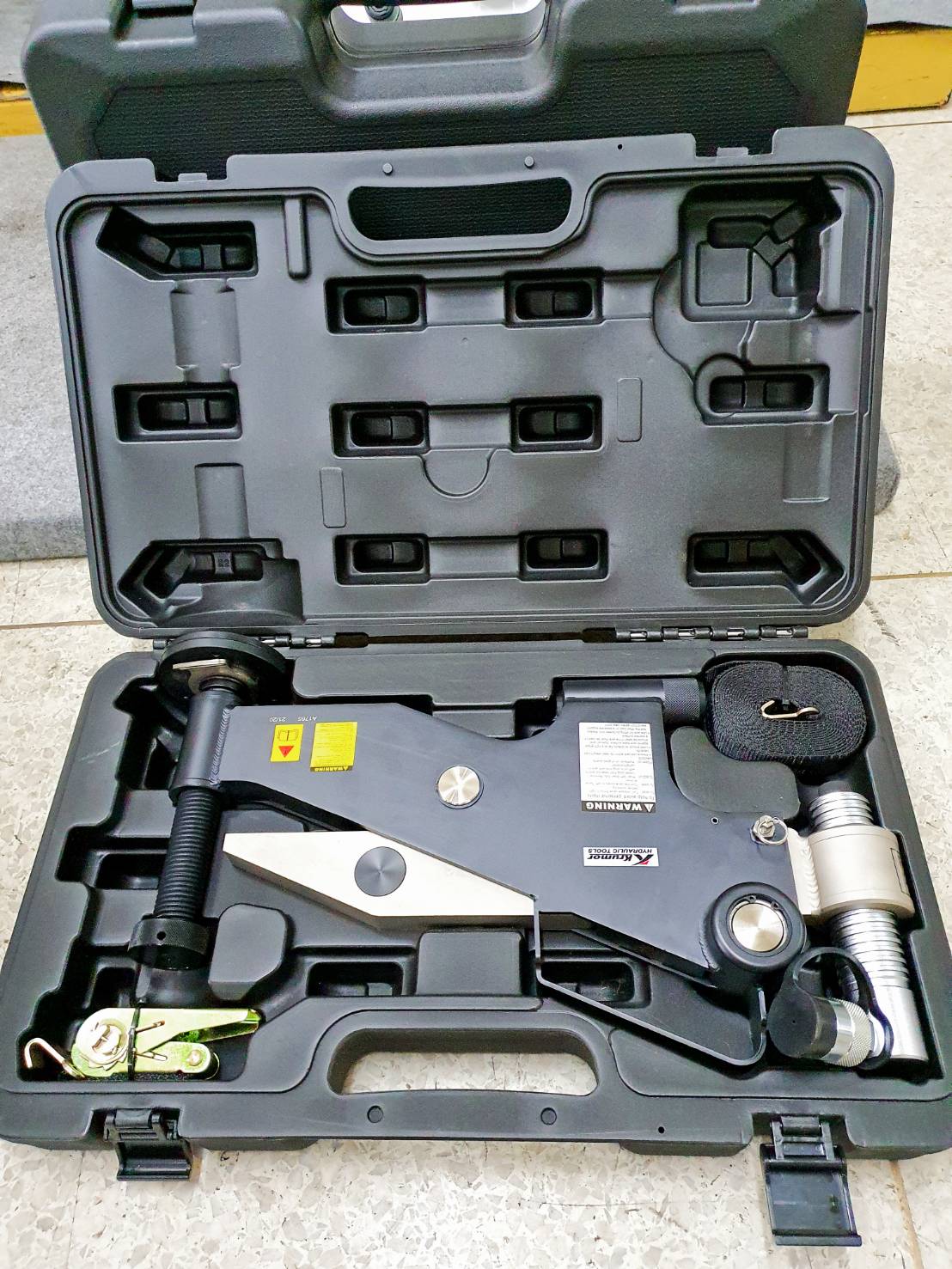

Hydraulic Flange Alignment Tool

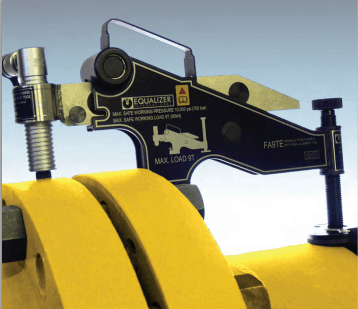

#H9TFE - Heavy-duty pipelines, large flanges

- 9-ton hydraulic alignment force, 700 bar
- Compatible with ANSI, API, BS & DIN flanges
- Miimum bolt hole diameter: 35.5 mm (1.40")
- Maximum wing reach: 240 mm (9.45")
- Handles large flanges in industrial environments
- Corrects both lateral and rotational misalignment
- Eliminates need for slings, chain blocks, rigging
- Compact design with carry case for easy transport
- Speeds up seal replacements&pipeline maintenance
- Suitable for on- & offshore, and energy sector uses
- Certified quality, Made in U.S.A.
- Warranty & insurance included
