Pipe Cold Cutting & Flange Facer Machine

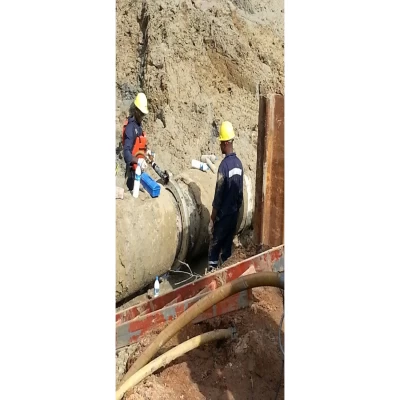

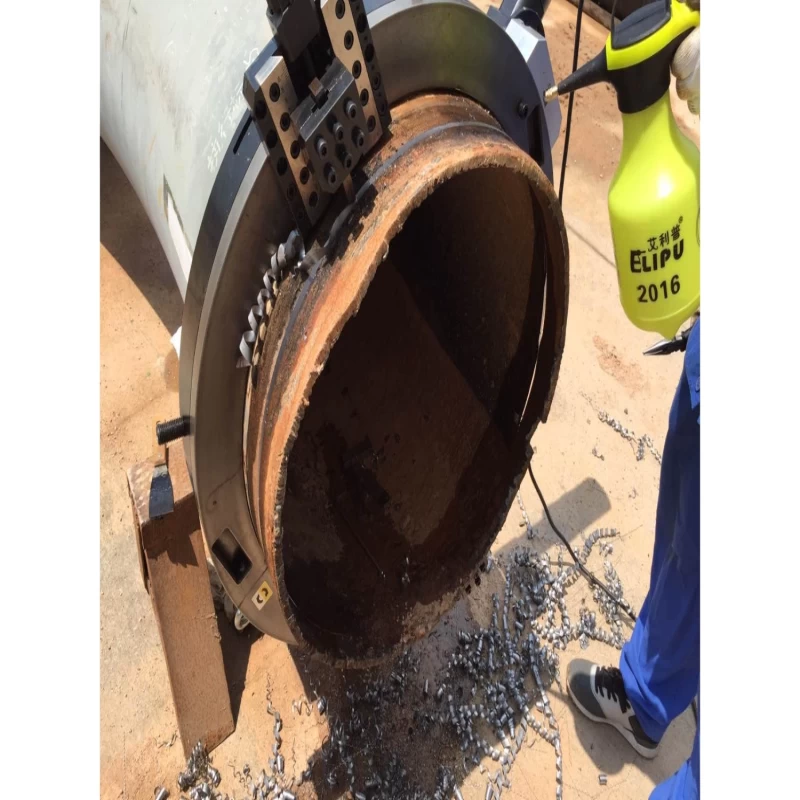

Pipe cold cutting machine
OD of pipe from 2" up to 60"
Aluminun & steel body selection
Pneumatic & hydraulic machine
Pipe cold cutting machine
-19 sizes machine for option
2"- 60" (50-1524 mm)
-Aluminum & steel body selection.
-Pneumatic & hydraulic machine.
*Order guide
-Choose the right size cutting machine.
-advise drive: Pneumatic/hydraulic.
-advise aluminum/steel body prefers.
-Comfirm beveling angel required.
-Comfirm welding jointrequired.
-Advice pipe material(Carbon/stainless steel)
-If the pipe wall thickness more than 30 mm,
inform us in advance. (Important)
Product Certificate,Product Warranty.
|
Model size |
Working |
O.D. |
Wall |
|
0612 |
6" - 12" |
168-325 |
≤30 |
|
0814 |
8" - 14" |
219-377 | ≤30 |
|
1016 |
10" - 16" |
273-426 |
≤30 |
|
1218 |
12" - 18" |
300-457 |
≤30 |
| 1420 |
14" -20" |
355-508 |
≤30 |
|
1622 |
16" - 22" |
400-560 |
≤30 |

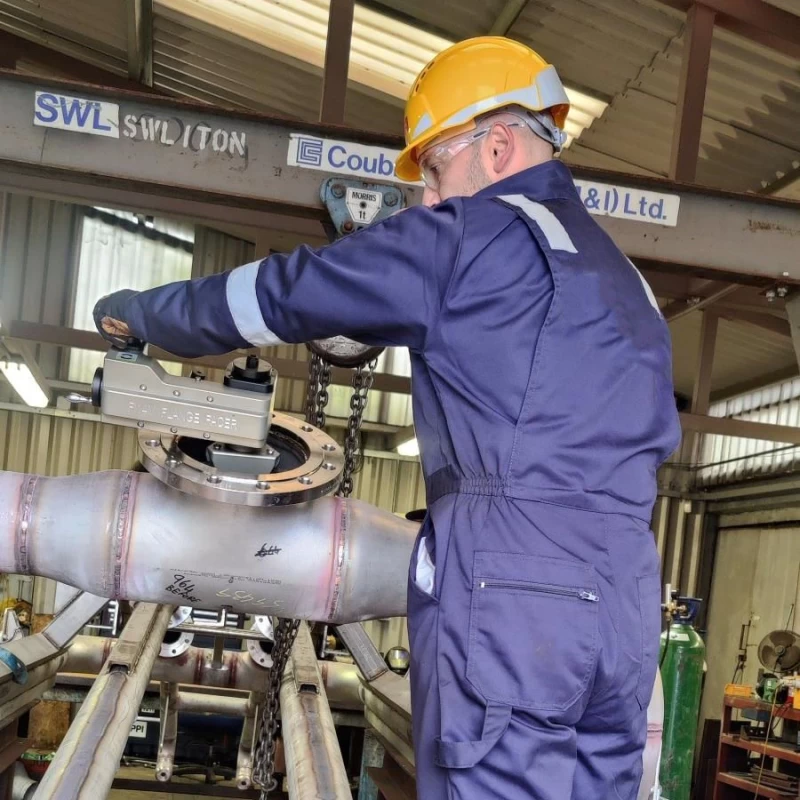

FI-355M Manual flange facer
No power required
Range 1.07″ -14″ (27.2-355.6mm)
Feeds apply to ASME B16.5

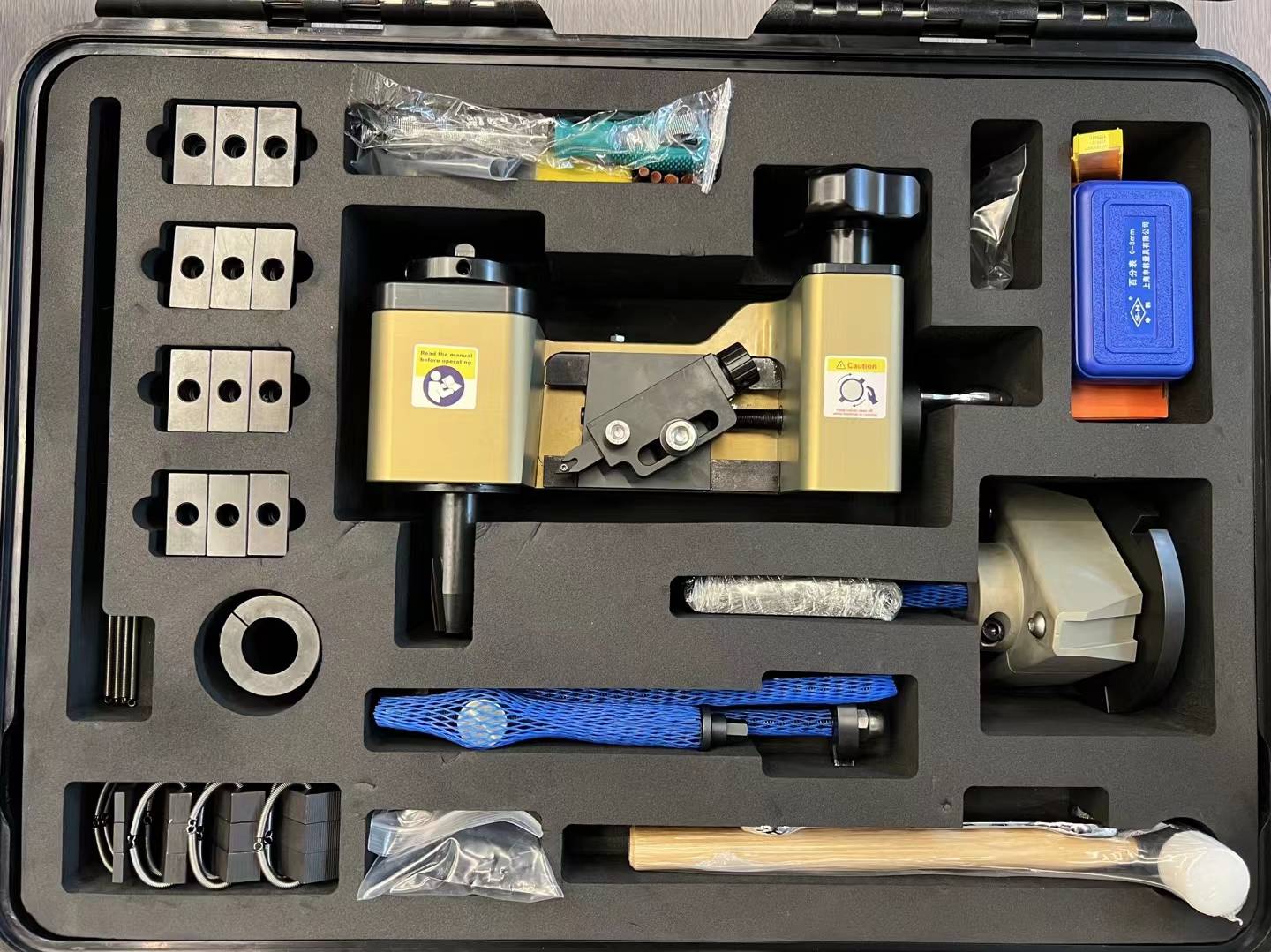

FI355M Manual Flange Facer
Clamping range1.07"-14"(27.2-355.6mm)
-Manual operated, no any power required.
-Smoothswing operation produces perfectly phonggraphic finish.
-Accurately mounts to I.D. in seconds, quick & easy set up.
-Feeds availablefor both smooth & stock finish apply to ASME B16.5
-Portable, durable trolley case, easy tostorage & move.
Product Certificate,
Product Warranty

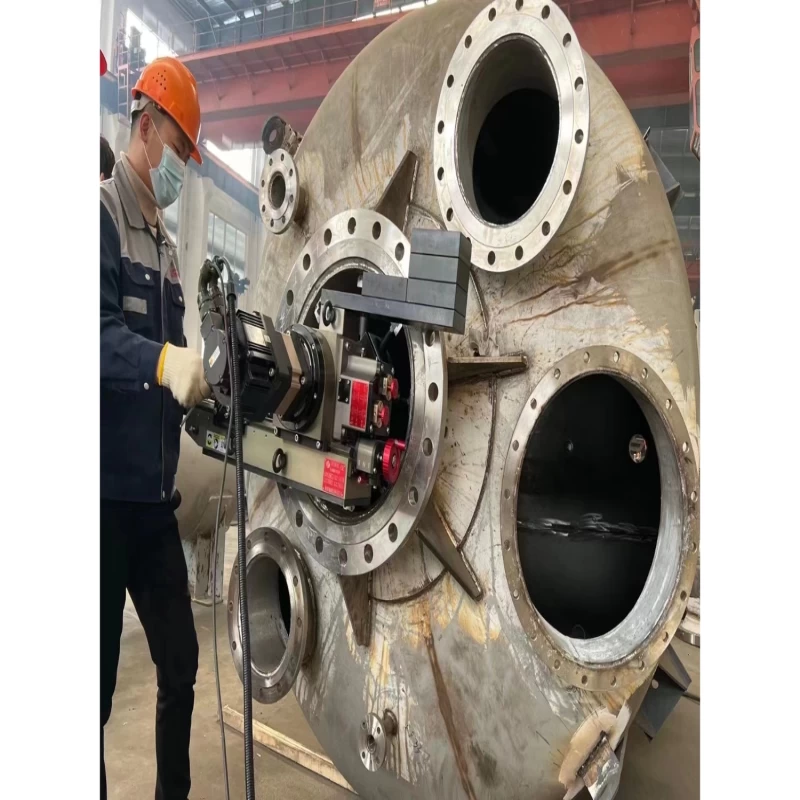

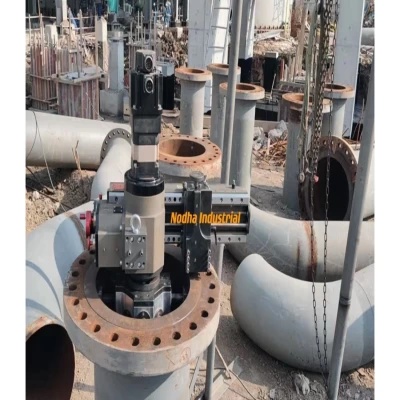

FI-700 Flange facing machine
Range 4.73"-26" (120-660mm)
Flat & raise face, RTJ-ring joint flange.
Aplly to ASME standard
FI-700 Flange Facing machine
Range: 4.73"-26" (120-660mm)
-Facing range: 4.72″ upto 27.56″ (120-700mm)
-Clamping range: 3.78″ upto 27.56″ (90-660mm)
-Tool post Travel: 1.97″ (50mm)
-No.of Feed setting: 2 (Fine and Coarse)
FI-1000 Flange facing machine
Range: 6"-40" (153-1000mm)
-Facing range: 6″-40″ (153-1000mm)
-Clamping range: 5.71″-35.82″ (145-910mm)
-Tool post Travel: 4″ (102mm)
-No.of Feed setting: 6
*Light weight & Rigidity body 7075 Alu.
*ID mounted & operates in any direction
*Air type adopts 1.47Hp pneumatic motor.
*2 continuous groove facing feeds for gramophone finish (ASME standard)
*3 different sized quick set independent bases for improved on-site operaion
*360° swivel tool post for groove details
*steel case package, easy to storage & move.
Product Certificate, Product Warranty
