Hand/Foot Operated Hydraulic Pump
“Power at Your Feet and Hands”

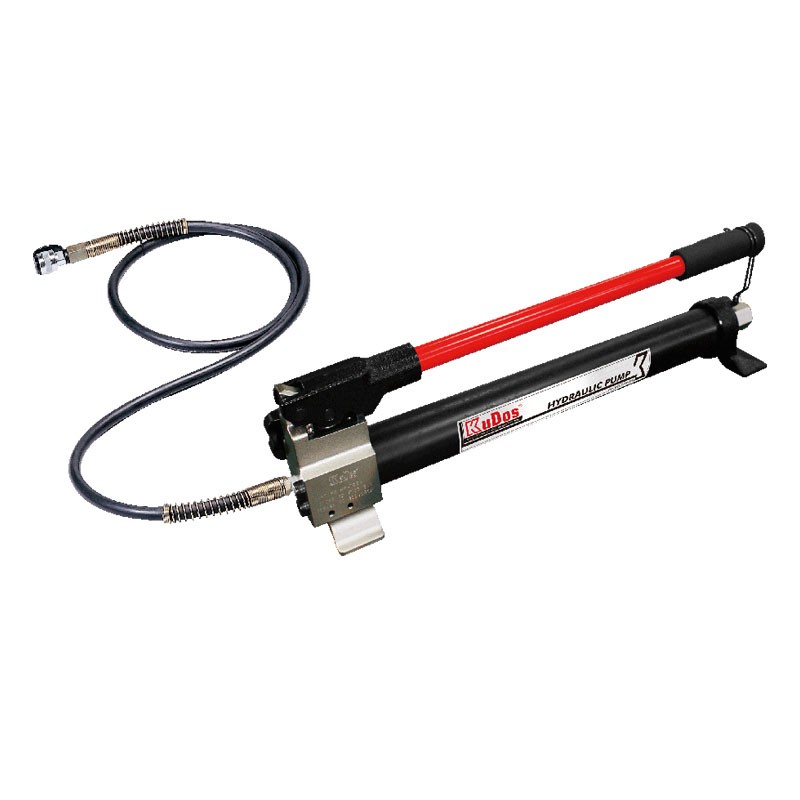

Model HP-700A - Compact Force, Reliable Flow
- Two-stage manual hydraulic pumps
- Designed for versatility, for hand and foot operation
- Max Operating Pressure: 700 bar (10,000 psi)
- Oil Delivery (Two-Stage):
* Low Pressure: 12.26 cc/stroke
* High Pressure: 2.26 cc/stroke
- Reservoir Capacity: 720 cc
- Dimensions: 590×130×160 mm (L×W×H)
- Weight: 9.6 kg
- External adjustable pressure setting
- Internal oil bladder
- Replaceable dropout bypass valve cartridge.
- Accessories: Includes a 2m high-pressure hose

Model HF-700 - Ergonomic Strength, Dual Control
- Primarily designed as a foot pump
- Can be used by both hands and feet
- Max Operating Pressure: 700 bar
- Oil Delivery (Two-Stage):
* Low Pressure: 12.26 cc/stroke
* High Pressure: 2.26 cc/stroke
- Reservoir Capacity: 720 cc
- Dual-speed piston
- External adjustable pressure
- Internal oil bladder (works in any position)
- Replaceable bypass valve cartridge

Hydraulic Electric Pump
“Hydraulic Power, Engineered for Precision”

Model EP-30S - Compact Power, Precise Control
- Compact, portable, and fully remote-controlled
- Two-stage electric-driven pump
- Max Pressure: 700 bar (10,000 psi)
- Oil Delivery (Two-Stage):
* Low Pressure: 2.6  L/min
* High Pressure: 0.32 L/min
- Oil Capacity: 3000 cc (3 Liters)
- Motor: ¾ HP motor (110 or 220V AC)
- Weight: 14.1 to 18 kg (w/o oil)
- Fully remote controlled: advance, hold, or retract
- Durable steel body with built-in carrying handle
- Visible oil level
- Accessories: Includes 2-meter hydraulic hose

Model EP-76MD - Heavy-Duty Flow, Quiet Strength
- High-performance pump w/ 4-way, 3-position manual valve
- Ideal for construction and industrial use
- Max Pressure: 700 bar (10,000 psi)
- Oil Delivery (Two-Stage):
* Low Pressure: 3.9  L/min
* High Pressure: 0.2 L/min
- Oil Capacity: 8000 cc (8 Liters)
- Motor: ½ HP Heavy-duty motor (110V or 220V AC)
- Weight: 25 kg (w/o oil)
- 5-meter remote control cable for advance/retract
- Thermal protected induction motor (low noise)
- Large-capacity one-piece metal oil tank
- Accessories: Hydraulic hose is sold separately

Gasoline Powered Hydraulic Pump
“Hydraulic Power, Anywhere You Need It”

Kudos GHP-5MR - Mobile Muscle, Remote Precision
- High-performance, gasoline-powered hydraulic pump
- Maximum Pressure: 700 bar (10,000 psi)
- Engine: 6.5 HP Honda engine (manually controlled)
- Oil Delivery (Two-Stage):
* Low Pressure: 13.4 L/min
* High Pressure: 2.4 L/min
- Oil Capacity: 9.5 Liters
- Valve Type: 4-way, 3-position manual valve
- Weight: 75.6 kg (without oil)
- Dimensions: Approximately 667 mm height
- 30 meter radio frequency wireless remote controller
- Supplied with a protective rack with inflatable tires
- 360° rotatable front wheels for easy maneuvering
- Designed to advance, hold, and retract
- Suitable for double-acting compression heads
- Upright-mounted pressure gauge for visibility
- Maintains pressure even when engine is turned off

Hydraulic Battery Operated Pump
“Hydraulic Power, Engineered for Precision”

Model CEP-15SS - Portable Strength, Smart Control
- Maximum pressure: 700 bar
- Oil capacity: 1500 cc reservoir
- Flow rate: 1.6 & 0.35 L/min at low & high pressure
- Weight: 8.5 kgs (w/o battery), 10 kg (with batteries)
- Wireless remote control up to 30 meters
- LCD display shows pressure, operation data
- Buzzer for incomplete crimping & pressure loss
- Overload relay & low-voltage protection
- Auto sleep after 3 minutes of inactivity
- Shoulder strap for portability & overhead use
