HYDRAULIC PUMP / Product / HYDRAULIC PUMP

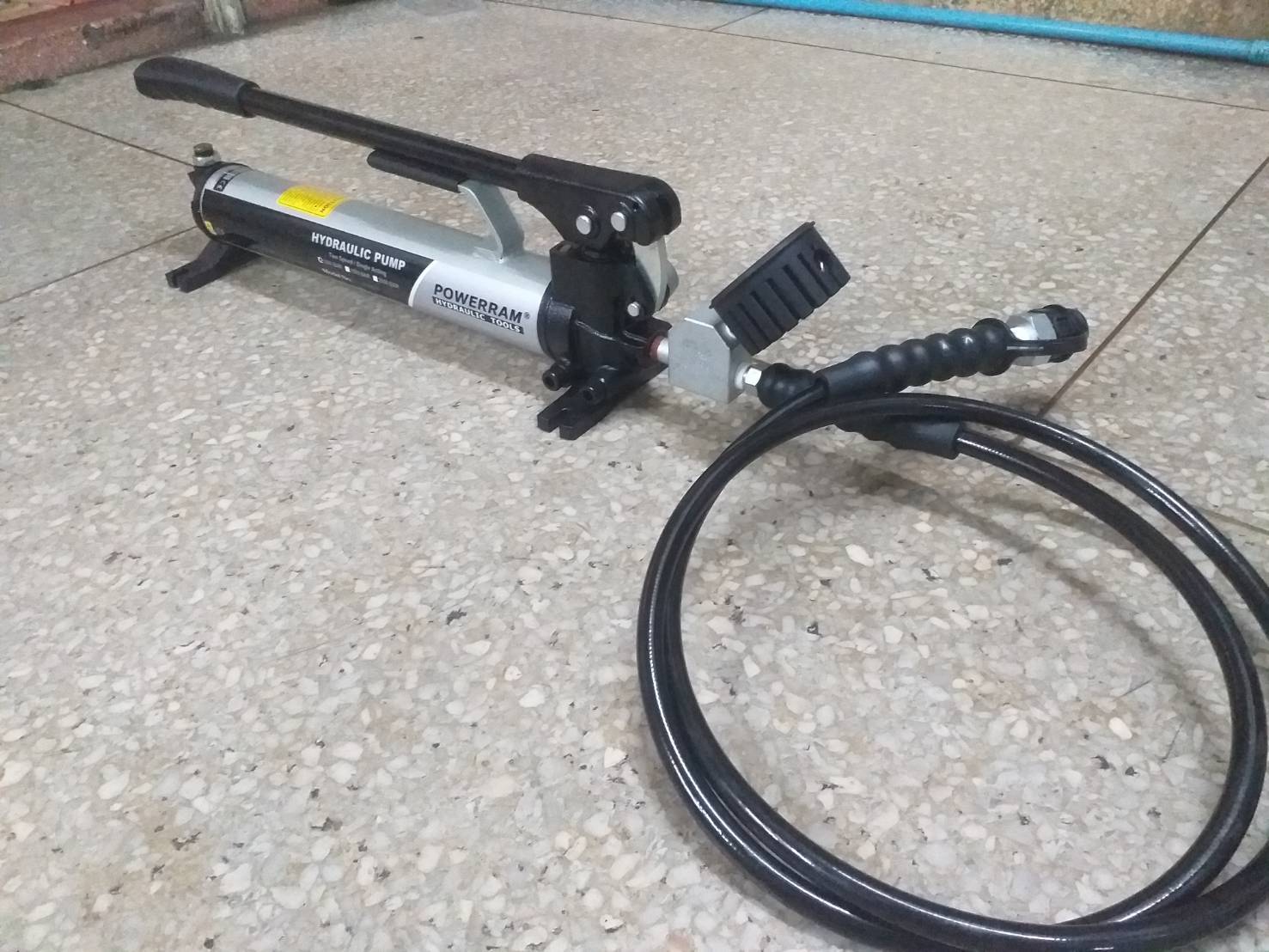

HYDRAULIC PUMP

-ไฮดรอลิคปั้มมือโยก
-Hydraulic Hand Pump
-Pressure 700 Bar (10000 psi)

ปั้มมือโยกไฮดรอลิค 700 บาร์
-2 speed hydraulic hand pump
-Max. working pressure 700 bar
-Fully Comply to ASME B30.1 Standard
-Product certificate & Insurance.
Product Warranty & Insurance


MODEL

PRESSURE RATING

USABLE OIL CAPACITY

1st STAGE

2 st STAGE

HB350

20

200

250

HB600

20

700

550

HB700

20

700

640

HC1500

20

700

1200

HE2000

20

700

1800

HC2500

20

700

2200

Specifications

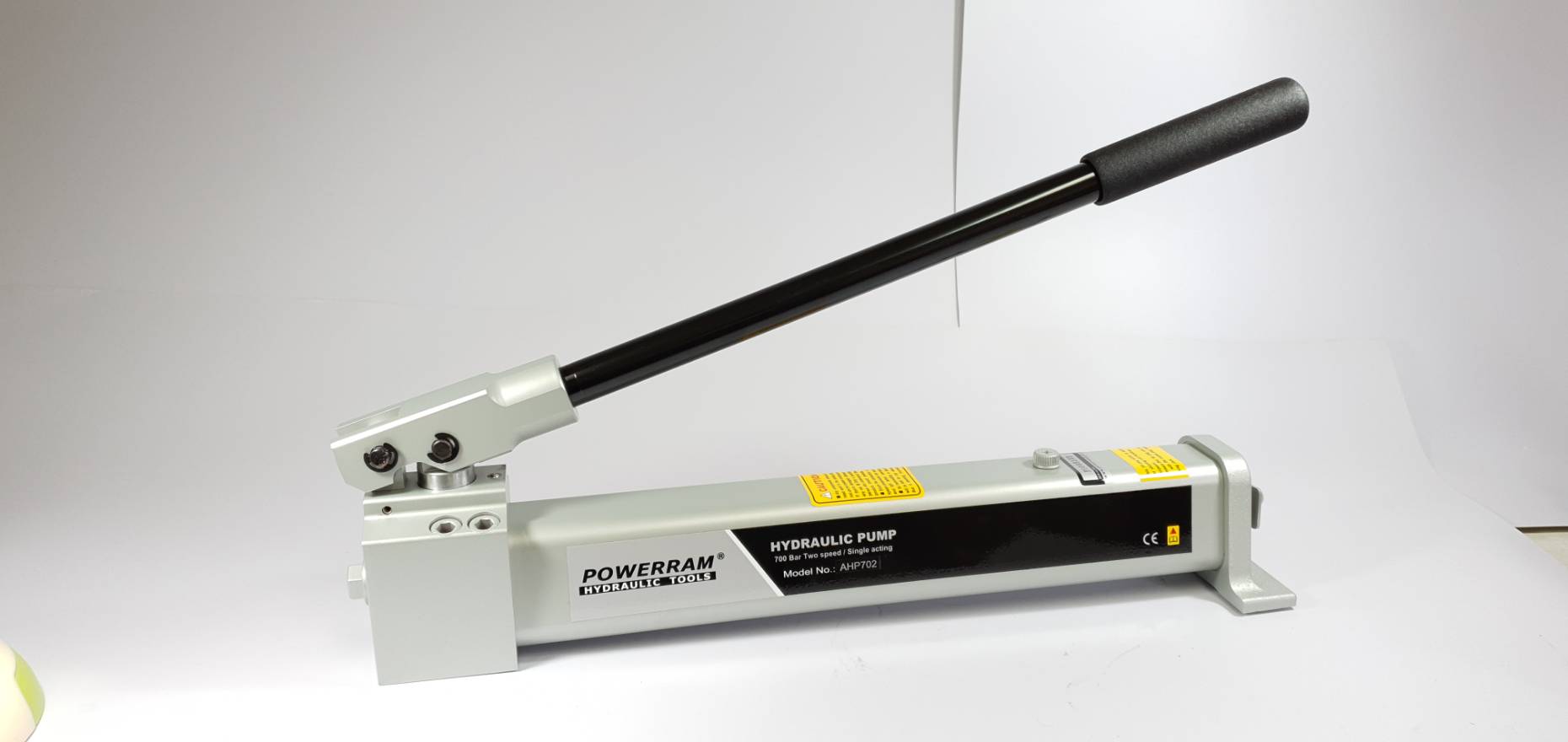

-อลูมิเนียมไฮดรอลิคปั้มมือโยก
-Light-weight Aluminum pump
-Pressure 700 bar (10000 psi)

ปั้มมือโยกไฮดรอลิค 700 บาร์
-2 speed hydraulic hand pump
-Light-weight aluminum hand pump
-Max. working pressure 700 bar
-Fully Comply to ASME B30.1 Standard
-Product certificate & Insurance.
Product Warranty & Insurance


MODEL

PRESSURE RATING(bar)

USABLE OIL CAPACITY

1st STAGE

2nd STAGE

AHP701

20

 700

350

AHP702

20

 700

750

AHP703

20

 700

1620

AHP703D

20

700

1620

AHP704

20

1000

750



Specifications

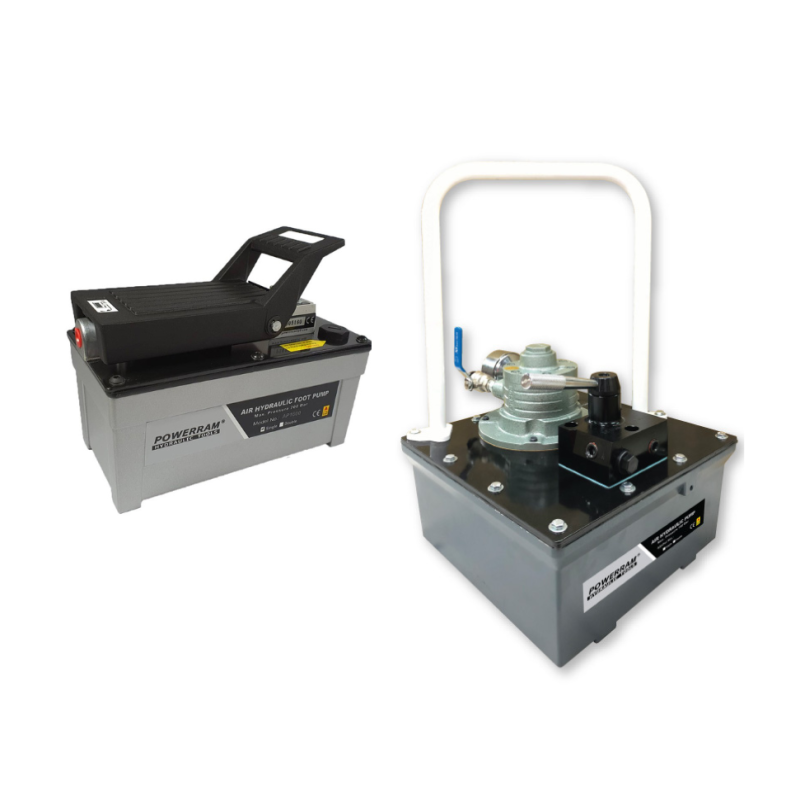

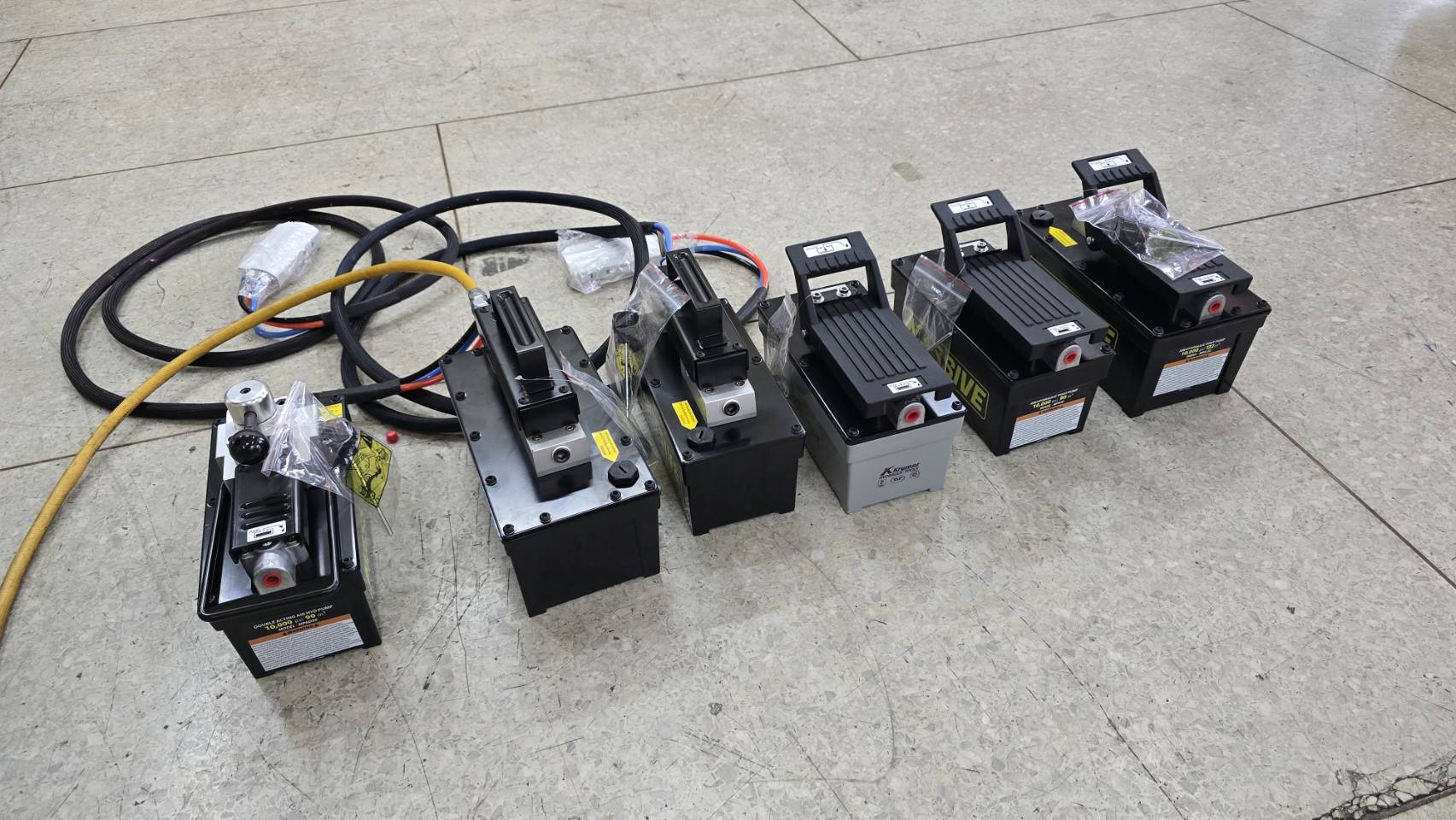

-Air-Hydraulic foot pump
-Aluminum Tank 1.6 - 3 Lite
-Pressure 700 bar (10000 psi)

Air-Hydraulic Pump 700 bar
-Pressure 700 bar, 1.6 - 3 Lites
-Light-Weight Aluminum Alloy Components
-Automatic Pressure Relief Valve
-Single & Double Acting, Foot Operated
Product Warranty & Insurance

MODEL

FUNCTION

INPUT AIR PRESSURE (bar)

USABLE OIL CAPACITY

AP1600S


SINGLE
ACTING



7 - 10

1300

AP3000S

7 - 10

2500

AP1600D


DOUBLE
ACTING



7 - 10

1300

AP3000D

7 - 10

2500



Specifications

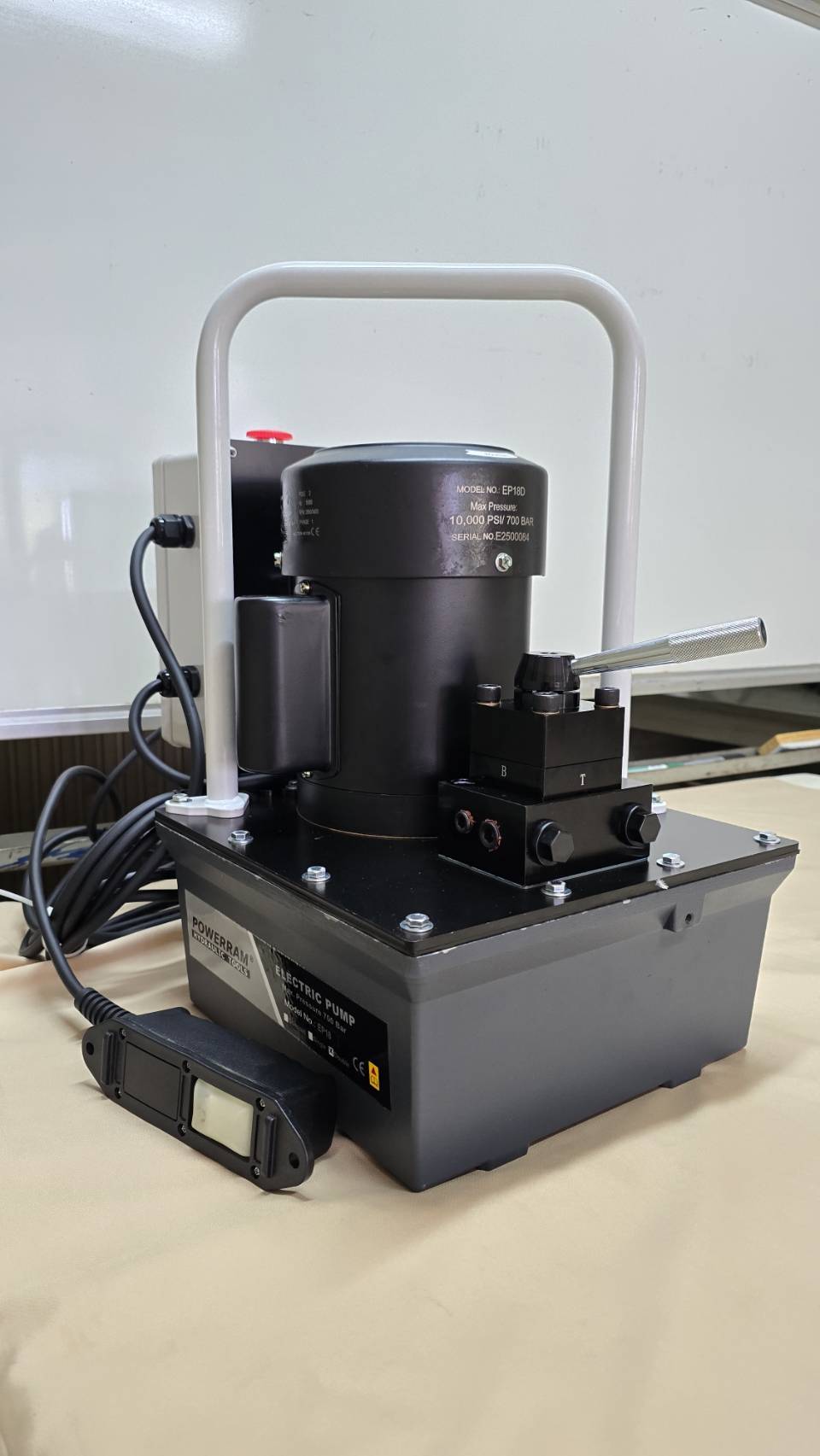

-Electric-Hydraulic pump
-Universal induction motor
-Pressure 700 bar (10000 psi)

Electric Hydraulic Pump 700 bar
-Max. pressure 700 bar, 8 Lites
-Universal Induction Motor, Thermal Protected
-Automatic Overload Relief valve, Safety Components

-Manual & Solinoid Valve
-Single & Double Acting
Product Warranty & Insurance

MODEL FUNCTION
TYPE
OIL TANK
(cc)
USABLE
OIL

(cc)
VALVE TYPE FUNCTION
EP18S
(EP18SS*)
SINGLE
ACTING
8000 7200 2W/2P ADVANCE,
RETRACT
EP18D
(EP18DS*)
DOUBLE
ACTING
8000 7200 4W/3P ADVANCE,
HOLD,
RETRACT
* SOLENOID VERSION

EP18

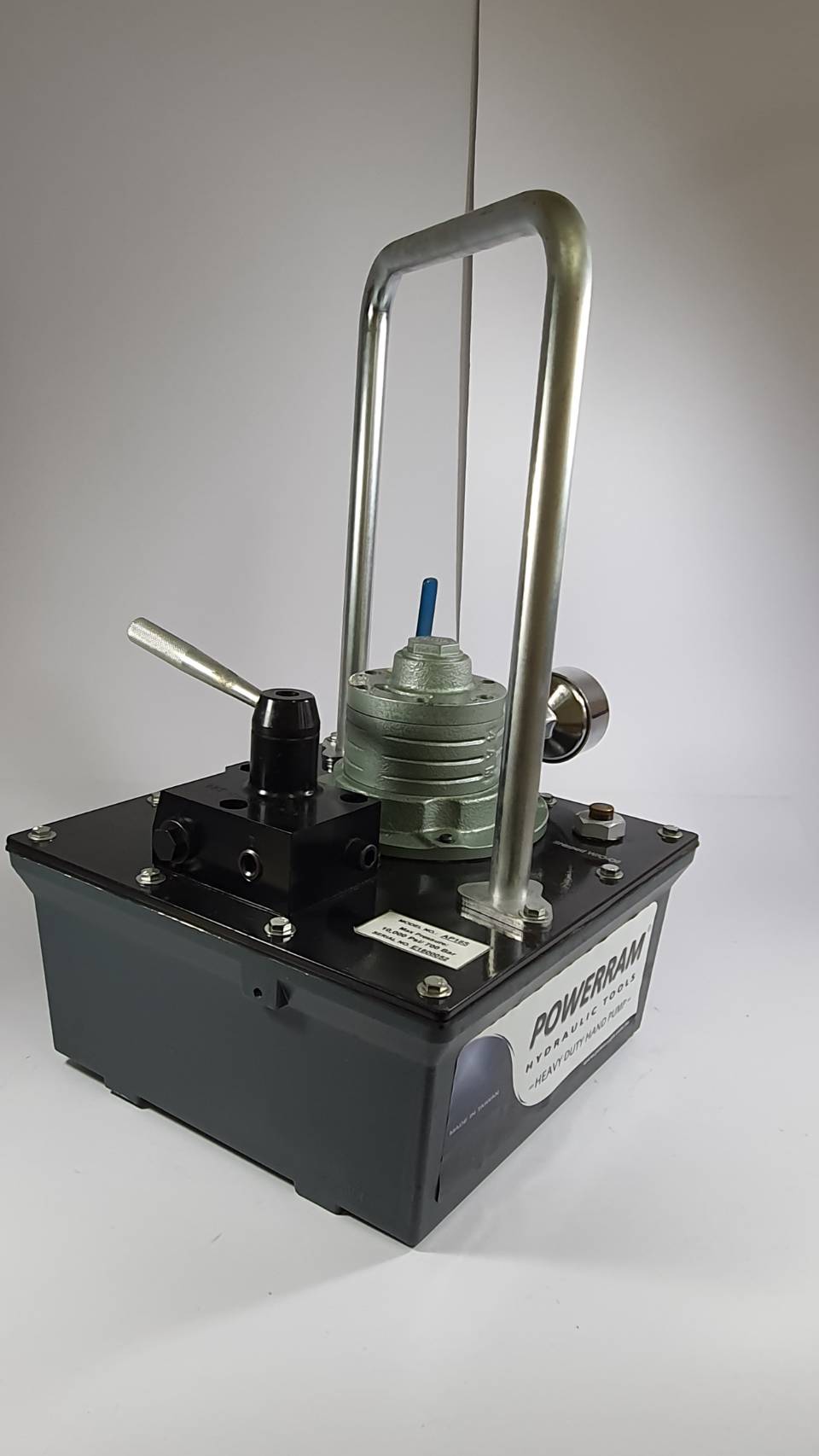

-Air-Hydraulic Pump
-Full load Air-fan motor
-Max. pressure 700 bar

Air-Hydraulic Pump 700 bar
-Pressure 700 bar, 8 Lites
-Light-Weight Aluminum Alloy Component
-Air Motor Capable of Starting Under Full Load
-Single & Double acting
Product Warranty & Insurance

MODEL FUNCTION
TYPE
OIL TANK
(cc)
OIL CAPACITY
(cc)
VALVE TYPE FUNCTION
AP-18S SINGLE
ACTING
8000 7200 2W/2P ADVANCE,
RETRACT
AP-18D DOUBLE
ACTING
8000 7200 4W/3P ADVANCE,
HOLD,
RETRACT

Specifications

-Cordless Hydraulic Pump
-Battery Hydraulic Pump 700 Bar
-BOSCH Li-ion Battery 18V 4.0Ah

Battery-Hydraulic Pump 700 bar
-Pressure 700 bar, 1500 cc.
-BOSCH 18V 4.0Ah Li-ion Battery
-Display related Pumping Pressure & Battery Capacity
-Programming Switch for Crimping, Cutting, Lifting
-Sleep Mode: 3 mins Without any Activate Action
Product Certificate, Made In U.S.A.
Product Warranty & Insurance




Specifications
