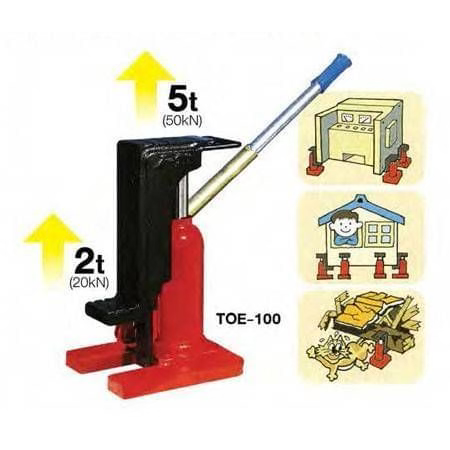

KRUMOR® Hydraulic Toe Jacks - CHL Series
“Powerful Lift, Precise Control”
- Hydraulic with built-in pump or pump separation
- Low-height lifting toe with extendable support feet
- For vertical lifting, setting, and positioning of machinery
- Safety Factor: 125%
- Operating Position: Vertical or Horizontal
- Certified product & product warranty included

CHL-5 - Compact strength for lighter loads
- Capacity: 5 Ton (Top) / 2.5 Ton (Toe)
- Low toe height (16mm) for tight access
- Toe Lift Stroke: ~117 – 133 mm

CHL-10 - Balanced power for everyday lifting
- Capacity: 10 Ton (Top) / 5 Ton (Toe)
- For light machinery maintenance and vehicle lifting
- Toe Lift Stroke: ~147 - 169 mm

CHL-20 - Mid-range muscle for machinery moves
- Capacity: 20 Ton (Top) / 10 Ton (Toe)
- Balanced capacity for medium-heavy machinery
- Toe Lift Stroke: ~152 – 177 mm

CHL-30 - Heavy-duty force with precision
- Capacity: 30 Ton (Top) / 15 Ton (Toe)
- Robust, high-stability toe for heavier jobs
- Toe Lift Stroke: ~155 - 183 mm
CHL-50 - Maximum capacity, ultimate reliability
- Capacity: 50 Ton (Top) / 25 Ton (Toe)
- For loads requiring robust toe support
- Toe Lift Stroke: ~155 - 195 mm

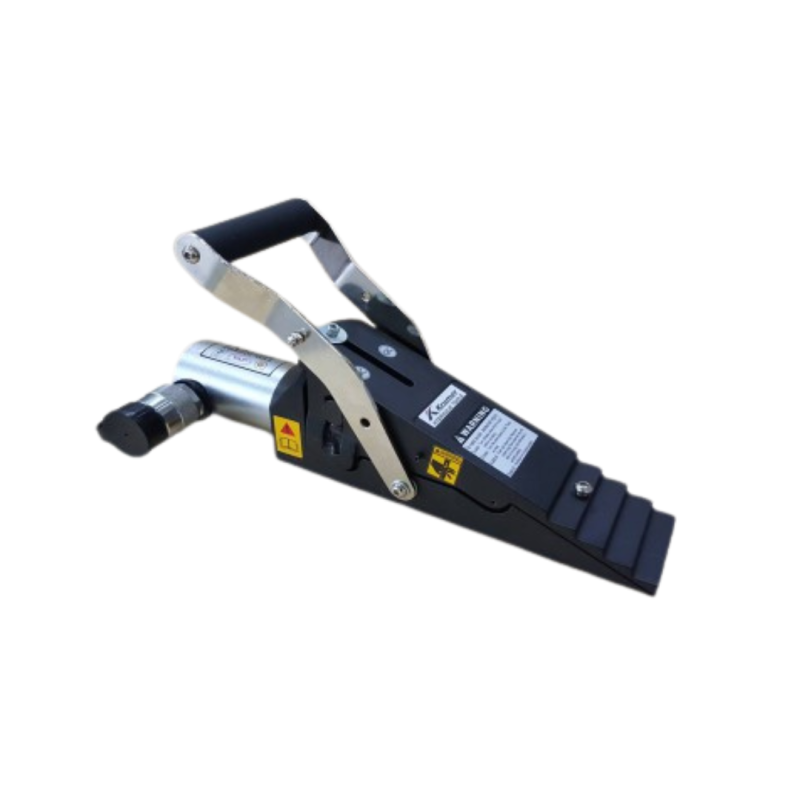

KRUMOR® Hydraulic Vertical Lifting Wedge
HLW-18T and HLW-18TC Series

Common Specifications (Both Models)
- Lifting Force: 18 Tons (180 kN) at 700 bar
- Access Gap: 9.5 mm (0.37 inches)
- Vertical Lifting Distance: 19.0 mm per step
- Max Lift Height: 67.5 mm w/ stepped block
- Operation: Single-acting, spring-return cylinder
- Interlocking first step, automatic manual retraction

Model HLW-18T (Standard System)
- Used with an external hydraulic pump & hose
- Weight: Approximately 8.5 kg (18.7 lbs)
- Lighter tool head for manual positioning
- Kit Contents: Wedge head, hydraulic cylinder, safety block, stepped block, and hex key
- Product certified & product warranty included

Model HLW-18TC (Integrated System)
- Integrated (built-in) hand pump
- Weight: Approximately 12.0 kg (26.5 lbs)
- Ideal for applications requiring greater portability
- Kit Contents: Wedge head with integrated hydraulic cylinder and hand pump, safety block, and stepped block
- Product certified & product warranty included

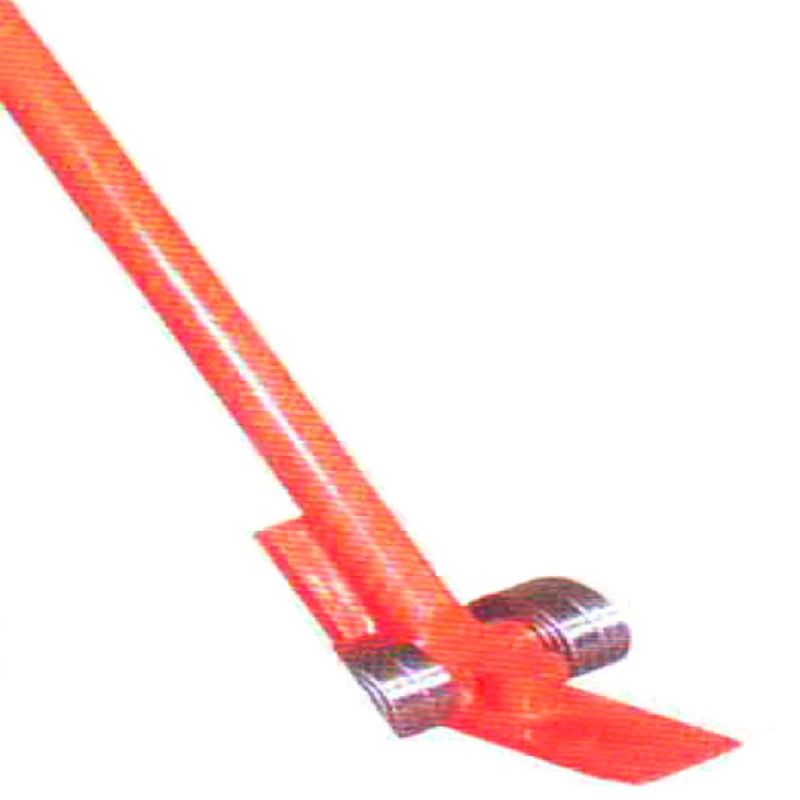

Roller Crowbar – WJO Series
“Roll with Power, Move with Ease”

Model WJO-3 - Compact roller strength for lighter loads
- Load capacity: 3 tons
- Overall length: Approx. 1400 mm
- Roller diameter: ~62 mm
- Lift height: ~50 mm
- Net weight: Approx. 8 kg
- Material: Heavy duty steel
- For lighter industrial machinery and equipment
- High-strength steel lever bar w/ two steel rollers
- Ideal for lifting heavy objects in confined spaces

Model WJO-5 - Heavy-duty rolling force for maximum efficiency
- Load capacity: 5 tons
- Overall length: Approx. 1530 mm
- Roller diameter: ~70 mm
- Lift height: ~55 mm
- Net weight: Approx. 11 kg
- Material: Heavy duty steel
- Heavy-duty version for heavy machinery
- Steel tubular handle to maximize leverage
- Safe for lifting heavy industrial machines
