Transverse & Universal Engine Supports
“Secure Support, Confident Service”

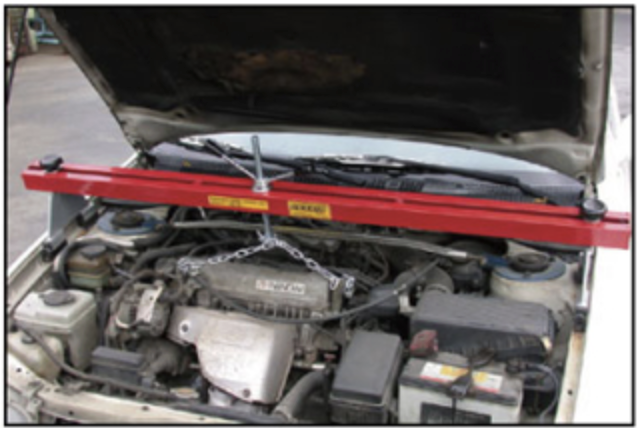

Models ES415 & ES416 - Reliable Bridge for Engine Safety
- Transverse engine supports
- Straddle fender walls & bridge for secure support
- Support plates match angles of inner fender walls
- Slide bolt can be positioned for weight distribution
- Attached w/ two slider bolts and chains (for ES416)
- Weight: N.W. 23 kg, G.W. 26 kg
- Certified product & warranty included

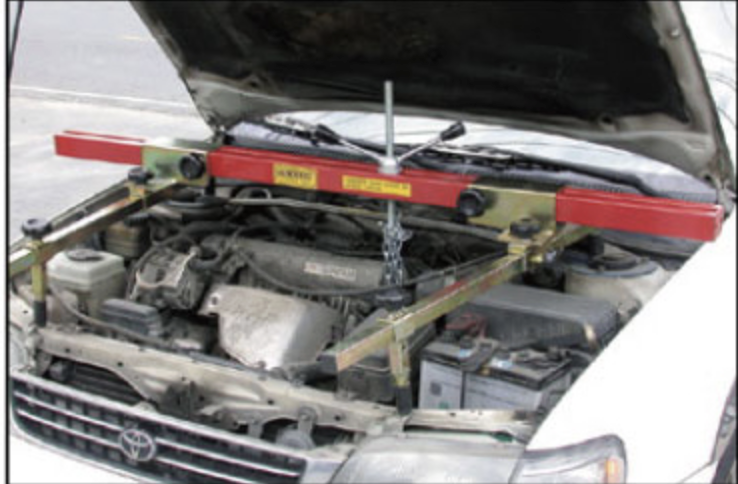

Models ES417 & ES418 - Universal Fit, Four-Point Stability
- Universal transverse engine supports/jacks
- For 4-point fixation, for cars w/o inner fenders
- 4-fixing point design as bridge for engine support
- Rubber at fixing points to prevent slippage & damage
- Equipped with feet for cars w/ inner fenders (ES418)
- Weight (ES417/418): N.W. 36/38 kg, G.W. 38/40 kg
- Certified product & warranty included

Engine Stands for Car & Heavy Duty Truck Engines
“Engine Service Made Strong”

Model ES450 - Compact Stand, Full Rotation
- Capacity: 450 kg
- 360° swiveling head
- Fully adjustable mounting arms
- Swivel castors for maneuverability
- Dimensions: 950 x 790 x 930 mm
- Net Weight: 19.3 - 21 kg (varies by listing)
- Max Load Length: 700 mm
- Certified produce & warranty included

Model ES707 - 500 kg Stability, Easy Storage
- Capacity: 500 kg
- Ideal for car and light truck engine service
- Four adjustable arms for fast mounting.
- Gearbox allows full 360° rotation, manually
- Four swivel ball-bearing caster wheels
- Foldable legs for compact storage
- Net Weight: 58 kg | Gross Weight: 61 kg
- Certified produce & warranty included

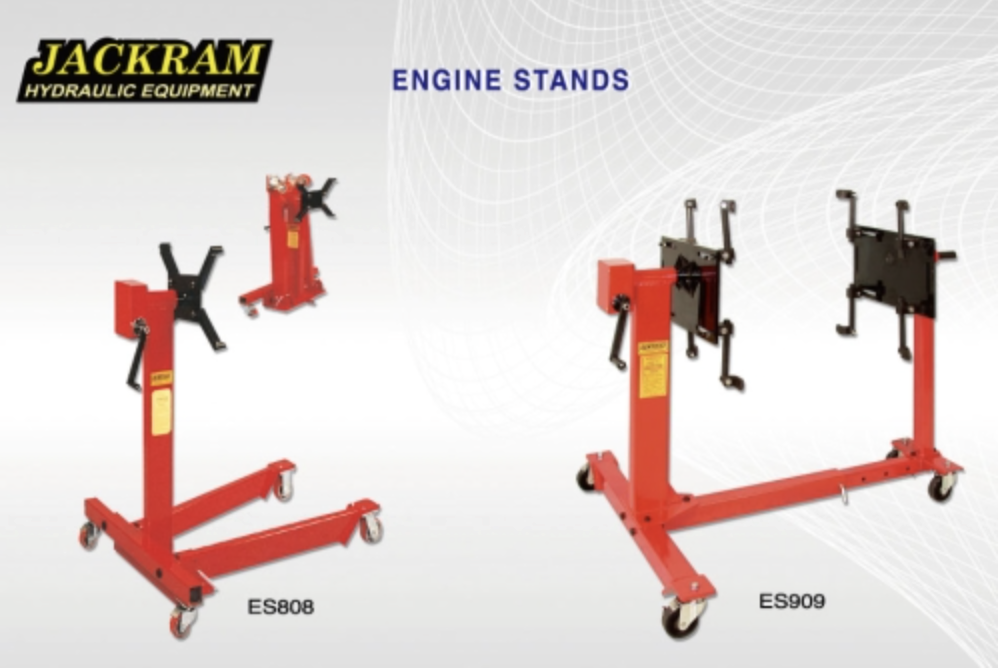

Model ES808 - 600 kg Strength, Reinforced Base
- Capacity: 600 kg
- Modified base frame for increased stability
- Net Weight: 80.6 kg | Gross Weight: 87 kg
- Certified produce & warranty included

Model ES909 - 1,000 kg Heavy-Duty Control
- Capacity: 1,000 kg (1 Ton)
- Twin-post design for high stability
- Gearbox for easy 360° rotation
- 4 universal mounting arms on each head
- Net Weight: 97 kg | Gross Weight (G.W.): 113 kg
- Certified produce & warranty included
- Heavy-duty repair stand for engines, transmissions, and rear axles of trucks, tractors, and construction equipment

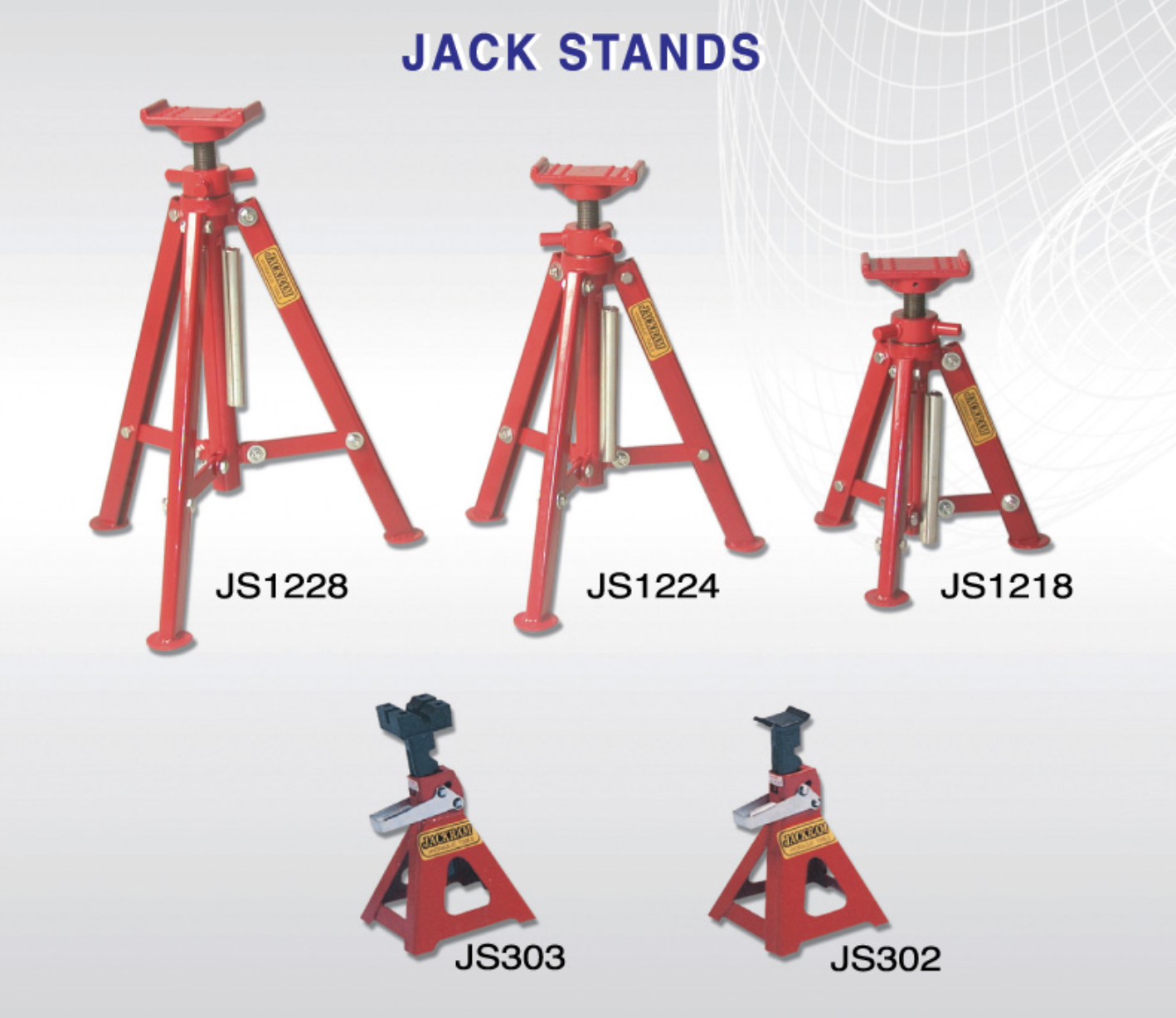

Jack Stands for Cars & Heavy Trucks
"Secure Support, Trusted Strength"

Model JS302 - Ratchet Reliability for Everyday Lifts
- Capacity: 3 Ton (per pair)
- Height Range: 270-420 mm
- Base Size: 177 × 194 mm
- Type: Ratchet & Lever Assembly
- Weight (Pair): Approx. 6.0 kg
- Certified quality & warranty included

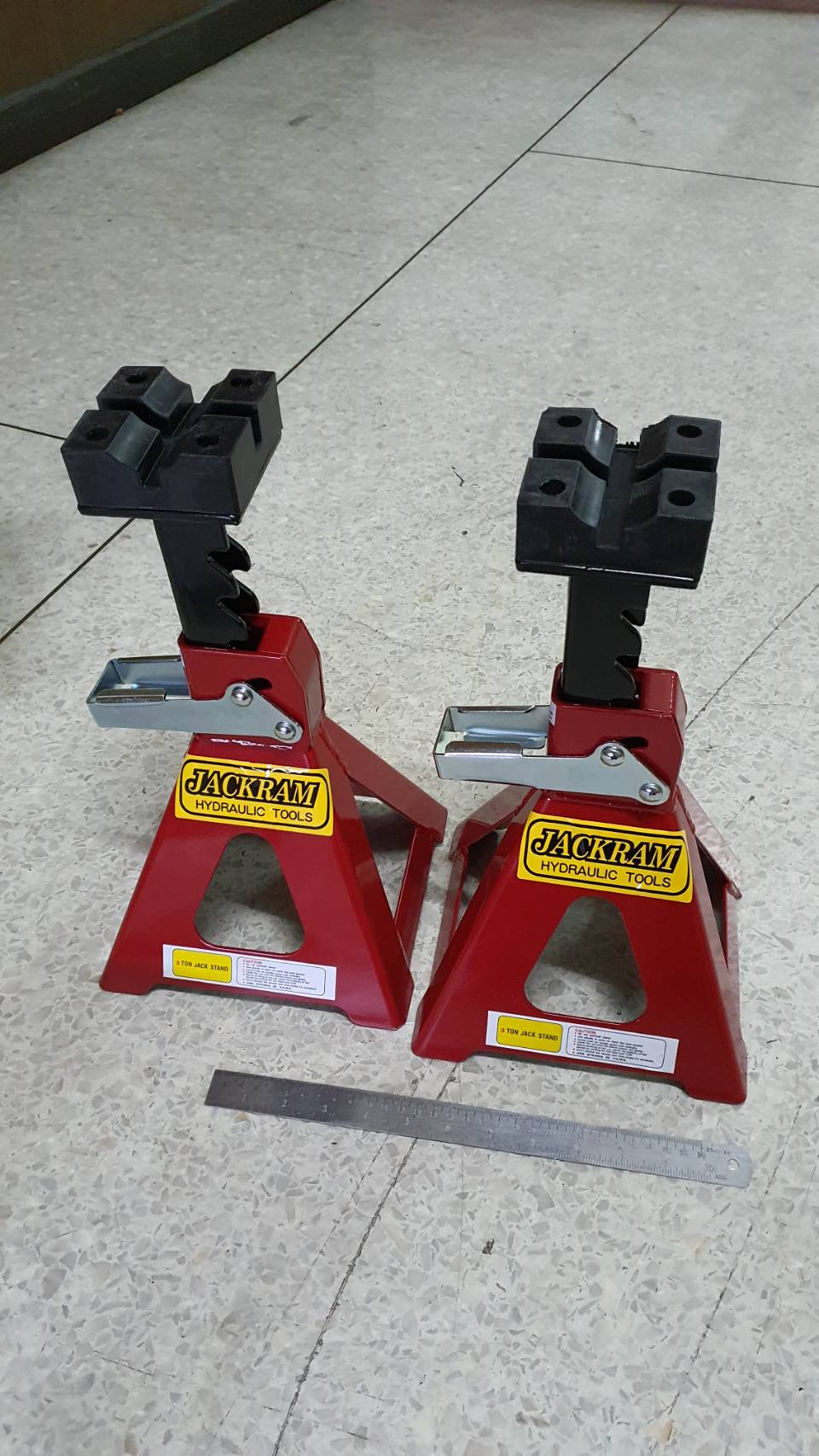

Model JS303 - Protective Power – Safe Support with Rubber Pads
- Capacity: 3 Ton (per pair)
- Height Range: 290-440 mm
- Base Size: 177 × 194 mm
- Rubber pads to prevent auto body damage
- Weight (Pair): Approx. 6.6 kg
- Certified quality & warranty included

Model JS1218 - 12-Ton Stability, Compact Truck Solution
- Capacity: 12 Ton (per stand)
- Height Range: 456-710 mm
- Pin position / Knurled nut & threaded stud
- Designed for trucks/buses, high-strength legs
- Weight: Approx. 18.5 kg per unit
- Certified quality & warranty included

Model JS1224 - Extended Reach, Heavy-Duty Confidence
- Capacity: 12 Ton (per stand)
- Height Range: 614-868 mm
- Pin position / Knurled nut & threaded stud
- Designed for trucks/buses
- Weight: Approx. 21 kg per unit
- Certified quality & warranty included

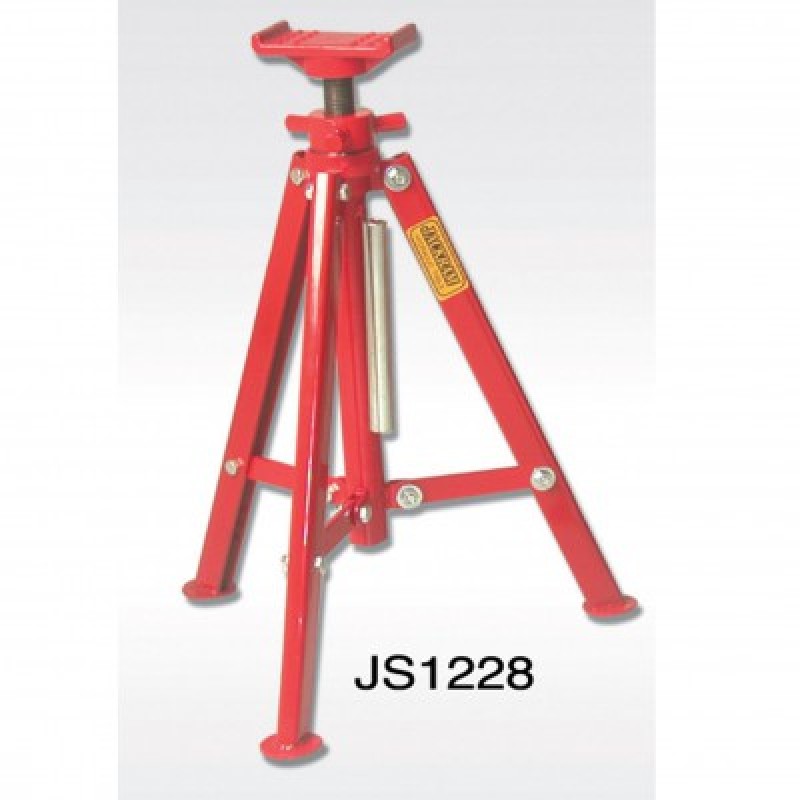

Model JS1228 - Maximum Height, Maximum Strength for Trucks
- Capacity: 12 Ton (per stand)
- Height Range: 710–1065 mm
- Pin position / Knurled nut & threaded stud
- Designed for trucks/buses
- Weight: Approx. 25 kg per unit
- Certified quality & warranty included
