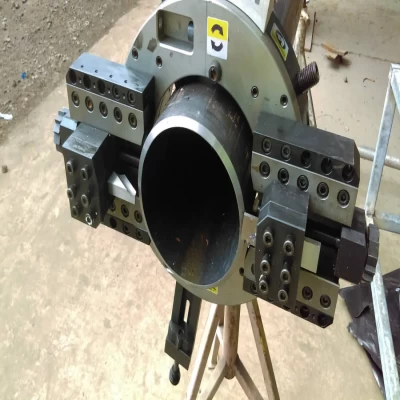

Air type Series split frame pipe cutting and beveling machine
Air motor Specification: Rotation speed: 226RPM; Torque:117Nm; Power:3.77HP
Advantage: Explosion-proof; Stable performance; Simple stucture makes easy to maintenance
Split frame

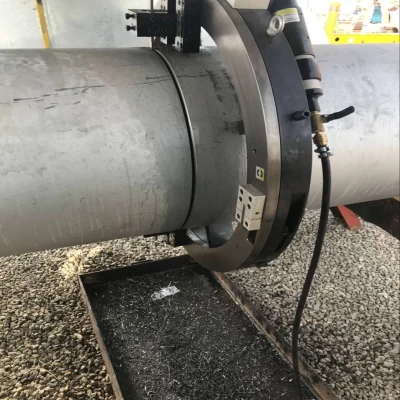

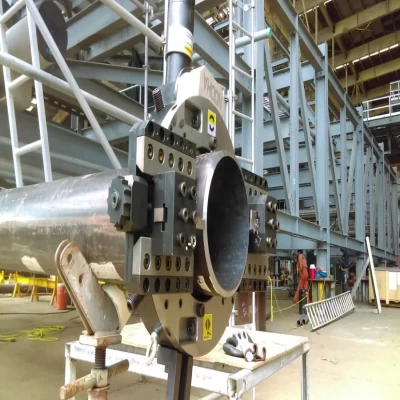

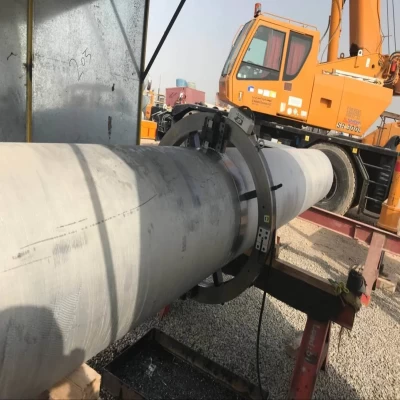

Machine quickly spilt to mount around outside diameter of in-line pipe
Cut or Cut/Bevel simultaneously
Cuts and bevels simultaneously leaving a clean precision prep ready for welding
Cold cut/Bevel
Hot torch cutting requires grinding and produces an undesirable heat affected zone Cold cutting/beveling improve safety
Low Axial & Radial Clearance
Tool feed automatically
Cut and bevel pipe of any wall thickness. Materials include: Carbon steel, alloy, stainless steel as well as other material Pneumatic, electric and hydraulic type for option Machining OD of pipe from 3/4″ upto 56″
|
|
