Flange Facing Machine เครื่องดัดหน้าแปลนสำหรับงานใหญ่

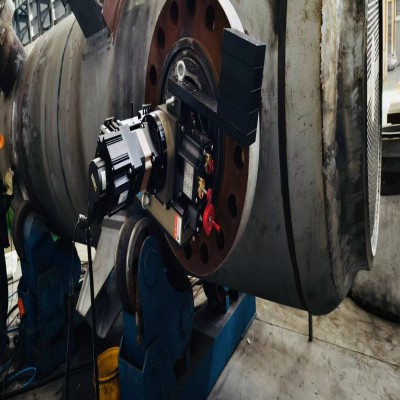

On-site Flange Facing Machine

Internally mounted and Externally mounted

Manually, pneumatic, electric or hydraulic for option

Continuous groove facing feed

Apply to ASME Standard

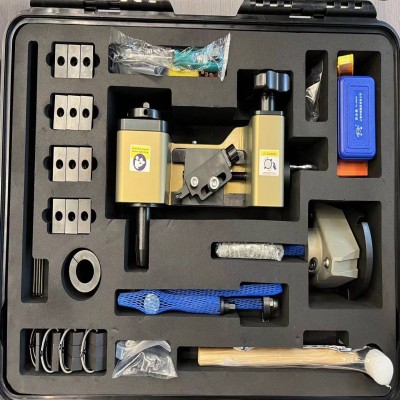

Portable, durable plastic/metal case

FI14M MINI flange facer,
ideal for small size flange rush repair job, operated by manpower, no need air or electric.

Cover the range from 1.07″ upto 14″ (27.2-355.6mm)

Complete with 3 size of mounting chassis, ensure the stability during machining

FE12 OD-Mounted flange facing machine,
has electric and pneumatic type for option. Air type adopts our own air motor, which used on clamshell for 20 years. Electric type adopts 1Kw Panasonic servo motor.

Facing range: 0″ upto 12″ (0-305mm)

Clamping range: 2″ upto 17.72″ (50-450mm)

Tool post Travel: 1.57″ (40mm)

No.of Feed setting: 2 (Fine and Coarse)

FI26 ID-Mounted flange facing machine,
has electric and pneumatic type for option. Air type adopts 1.47HP our own air motor, which used on clamshell for 20 years. Electric type adopts 1Kw Panasonic servo motor.

Facing range: 4.73″ upto 26″ (120-660mm)

Clamping range: 3.55″ upto 26″ (90-660mm)

Tool post Travel: 1.97″ (50mm)

No.of Feed setting: 2 (Fine and Coarse)

FI40 ID-Mounted flange facing machine,
has electric and pneumatic type for option. Air type adopts 2.3HP MODEC air motor. Electric type adopts 1.5Kw Panasonic servo motor.

Facing range: 6″ upto 40″ (153-1000mm)

Clamping range: 5.71″ upto 35.82″ (145-910mm)

Tool post Travel: 4″ (102mm)

No.of Feed setting: 6

FI60 ID-Mounted flange facing machine,
has electric and pneumatic type for option. Air type adopts 4HP MODEC air motor. Electric type adopts 3Kw Panasonic servo motor.

Facing range: 12.6″ upto 60″ (320-1500mm)

Clamping range: 11.4″ upto 57.08″ (290-1450mm)

Tool post Travel: 4″ (102mm)

No.of Feed setting: 6
