TORQUE WRENCH
ประแจทอร์ค ไฮดรอลิค

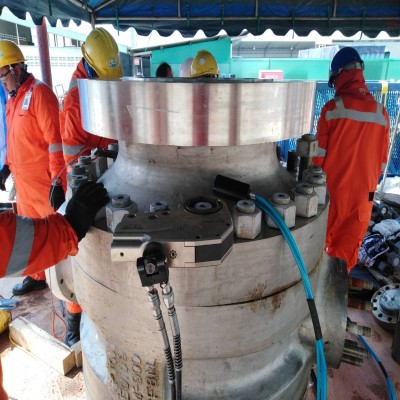

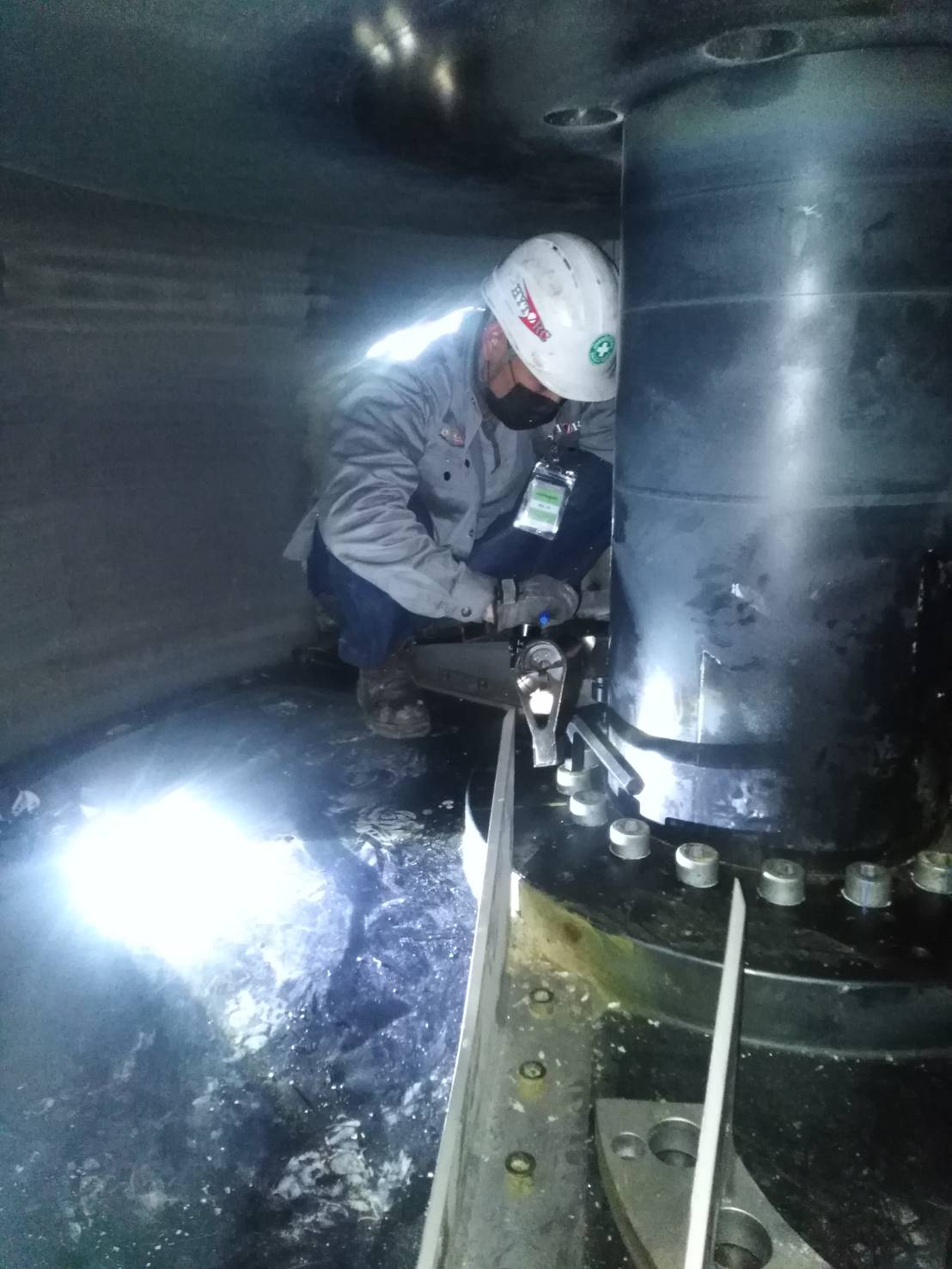

Hydraulic Square Drive torque wrenches
-Square Drive Wrenches Lightweight High Power Wrench for Sockets or Allen-key
-Dual Pawl Mechanism-Heavy duty.
-360 degree Reaction Arm-Easy to working in any position.
-One-way Ratchet-the only way to assure hands-free and multi-tool operation.
-Aviationmaterial Body housing-Aluminum-Titanium alloy and high strength steel
-Anti-Rust Finish-Special surface treatment.
-Small Operating Radius. "Drop Hole" will protect over pressure operating.
-Torquet Accuracy + -3% Repeatability 100%
-3/4"-2-1/2" Square Drive Torque Wrench
-24/7 Service, Free-on site survey
-Repair service & Calibration certificate
-E.C.I.T.B. Industry Training
Product Certificate, Made In U.S.A.
Product Warranty & Insurance
| MODEL | Bolt size (mm) |
Max. torque | |
| lbf.ft | Nm. | ||
| KU-1 | 16 ~ 36 | 1409 | 1911 |
| KU-3 | 22 ~ 48 | 3328 | 4512 |
| KU-5 | 27 ~ 56 | 5672 | 7690 |
| KU-8 | 30 ~ 64 | 6951 | 10780 |
| KU-10 | 36 ~ 72 | 11688 | 15847 |
| KU-20 | 42 ~ 90 | 20049 | 27183 |
| KU-25 | 48 ~ 100 | 25611 | 34725 |
| KU-30 | 64 ~ 120 | 37632 | 51022 |
KU SERIES
ประแจทอร์ค ไฮดรอลิค

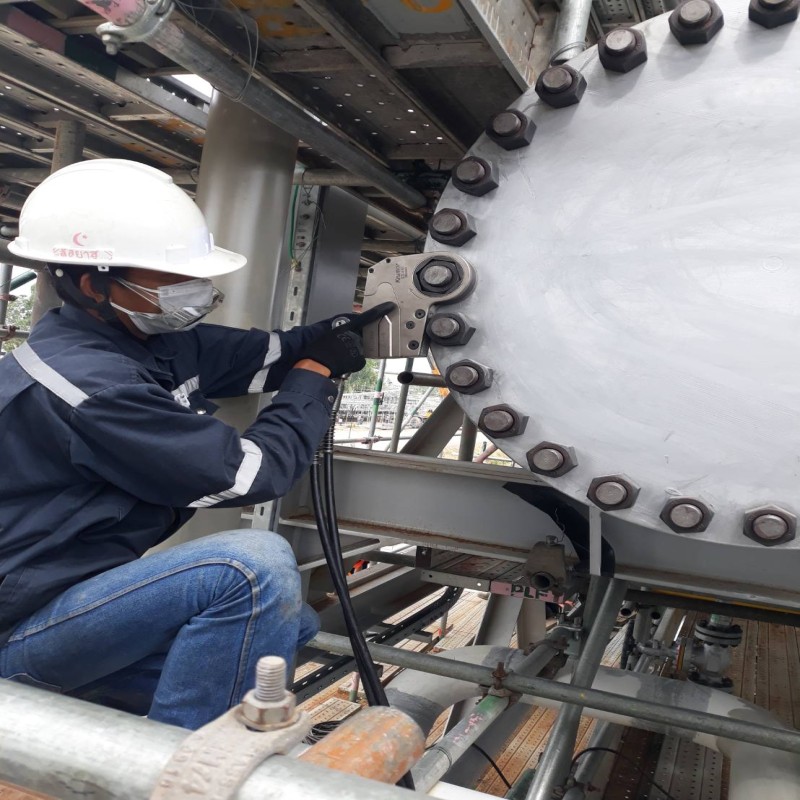

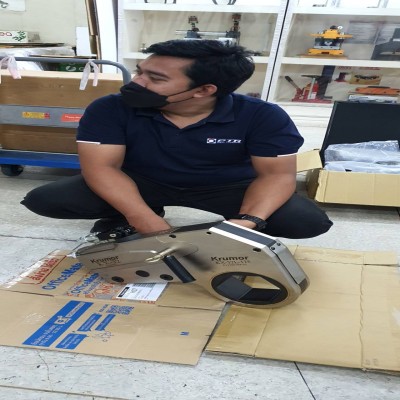

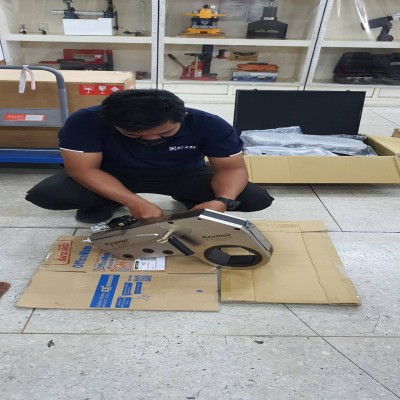

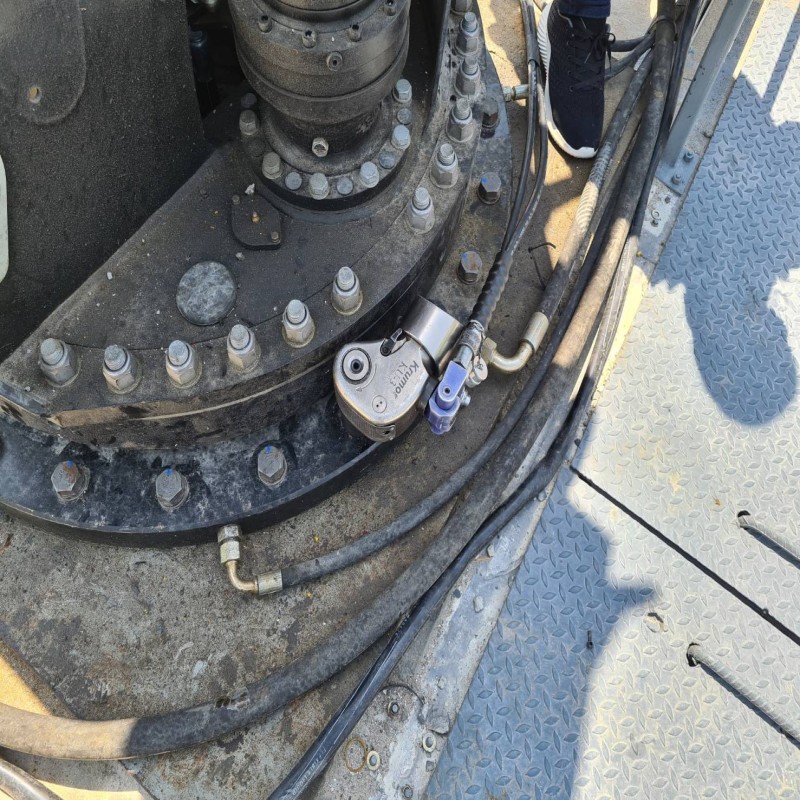

Low profile torque wrenches
-Double-Acting, Hexagon Cassette Wrenches
-Lightweight, Low Profile & Slim Nose Radius
-Tool body can be Reaction Arm, easy to work.
-Bronze bushing anti galling.
-"Drop Hole" will protect over pressure operating.
-Output accuracy: +/- 3%
-24/7 Service, Free-on site survey
-Repair service & Calibration certificate
-E.C.I.T.B. Industry Training
Product Certificate, Made In U.S.A.
Product Warranty & Insurance
| MODEL | Hex. size (mm) |
Max. torque | |
| lbf.ft | Nm. | ||
| KX-2 | 30-60 | 2178 | 2994 |
| KX-4 | 41-80 | 4732 | 6504 |
| KX-8 | 50-105 | 10689 | 14692 |
| KX-16 | 70-115 | 16854 | 23165 |
| KX-32 | 80-155 | 37566 | 51632 |

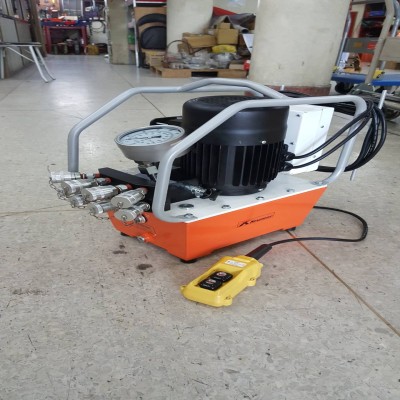

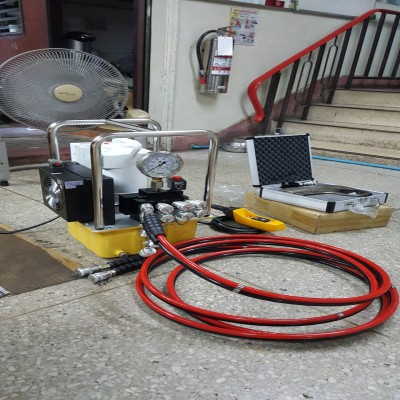

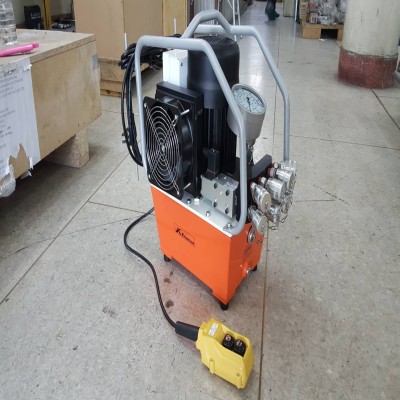

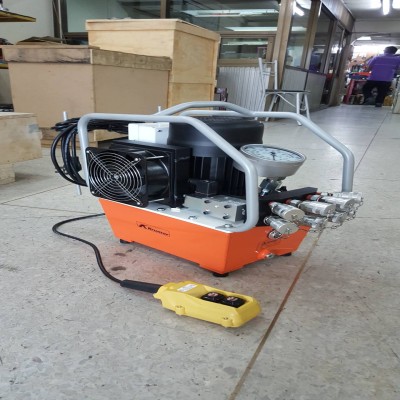

Electric hydraulic torque wrench pump
Air-hydraulic torque wrenches pump
-External adjustable pressure regulator.
-Retract side internal relief valve protects tool.

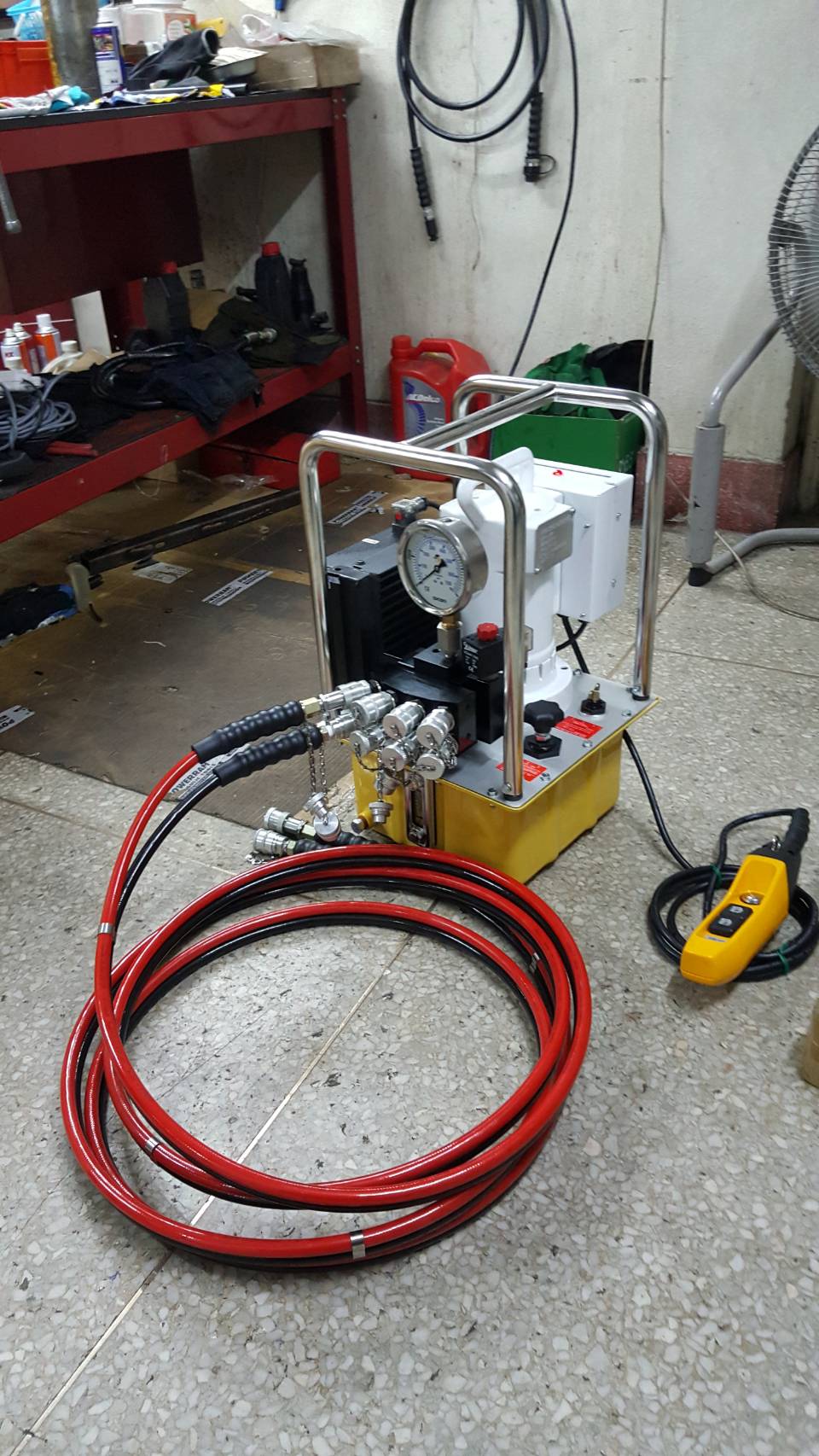

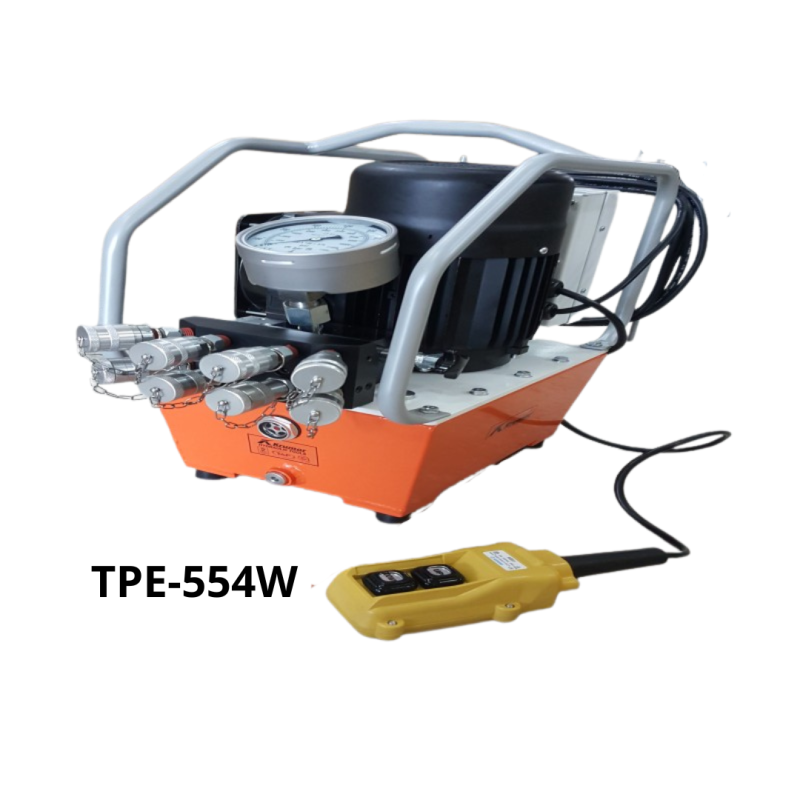

-TPE-554W series: just use with Hydraulic Torque Wrench.
-Opt eight 1/4" ports (Female & male couplers) can synchronize work for 4 hydraulic wrench.
-Motor will automatic stop moving as as idle running 30 seconds and pressure release.
-Safety start: After stopping, need to press another start button to continue.
-Heat Exchanger Kit: Design air cooling to avoid pump overheating and costly repair from long work periods.
-Max. pressure 700 bar
-Relift valve protects tool
-Safety star protects
-Automatic stop protects
-Heat exchanger kit cooling hydraulic
-Remote control 5 m.
| MODEL | Motor (kw) |
Flow rate | Usable oil (liter) |
Weight (kg) |
|
| 350 Bar (l/m) |
700 Bar (l/m) |
||||
| TPE-230 | 1.1 | 1.6 | 0.8 | 6 | 29 |
| TPE-554W | 0.84 | 1.2 | 0.9 | 7 | 32 |
Air-Hydraulic Torque Wrench Pumps
| MODEL | Air supply | RPM | Flow rate |
Oil tank
(liter)
|
|
|
350 Bar
|
700 Bar
|
||||
|
WPE-554
|
1.4 m3/min
@ 6 BAR
|
3000
|
1.1
|
0.9
|
8 |
#WPE-554
-Max. pressure 700 bar
-Fan motor 4 Hp powerful
-2 stage air pump.
-Pneumatic remote 5 m.
