HAND TOOLS

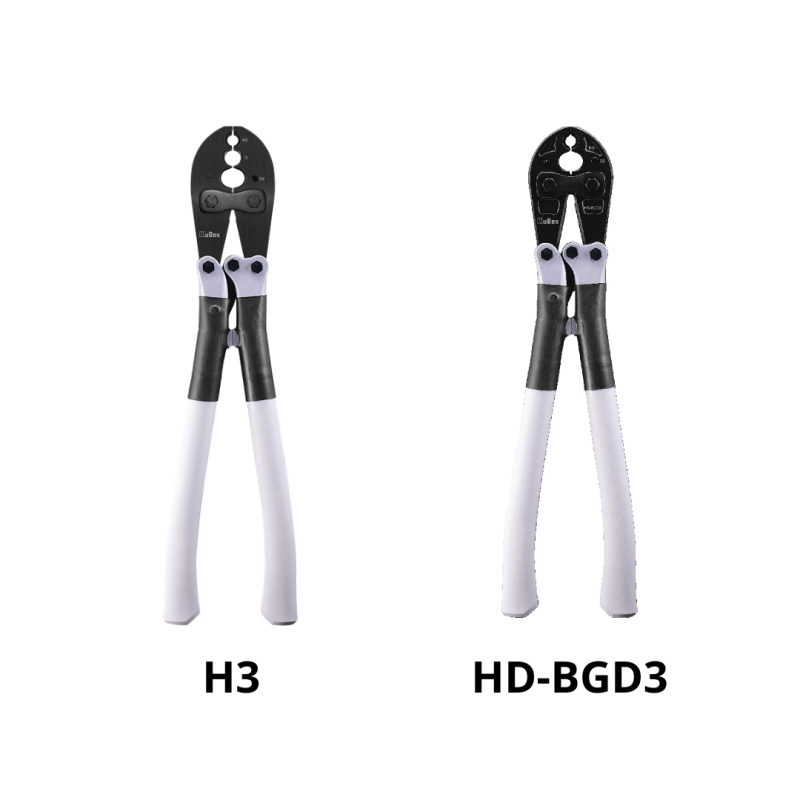

-H-3 คีมบีบหลอดต่อสาย(รุ่นใหม่)
-คีมบีบคอนเนคเตอร์ BG/D3/O
-HD-BGD3 คีมบีบConnector H
Crimping force 4.5 ton

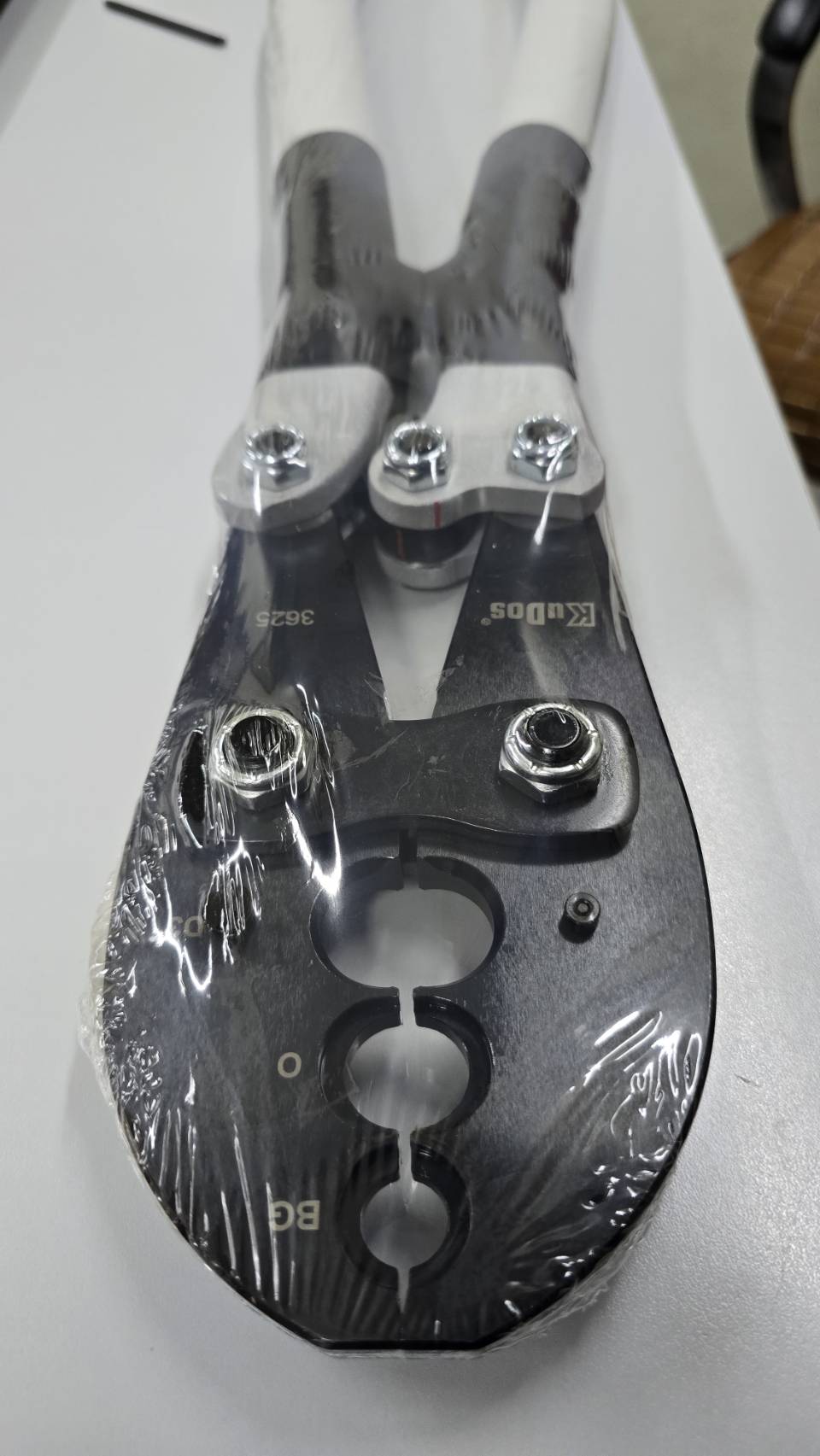

#H-3 คีมบีบคอนเนคเตอร์ (BG/D3/O)
#HD-BGD3 คีมบีบหลอดต่อสายไฟ
Crimping force : 4.5 ton
Uses w-style dies.
-Proper crimps are assured with butting steel jaws.
-Increased strength and greater bearing area is provided with larger steel bolts.
-Fast, easy, one-hand die insertion.
-No lost dies with spring loaded positive lock die retainer buttons.
-Full crimp force assured with over center cam action.
-Operator protection provided with butt stops and heat shrink tubing.
-Long life expectancy provided with fiberglass handles and lightweight high strength aluminum alloy castings.
-The “D3” groove accommodates the line of type “W”-die inserts.

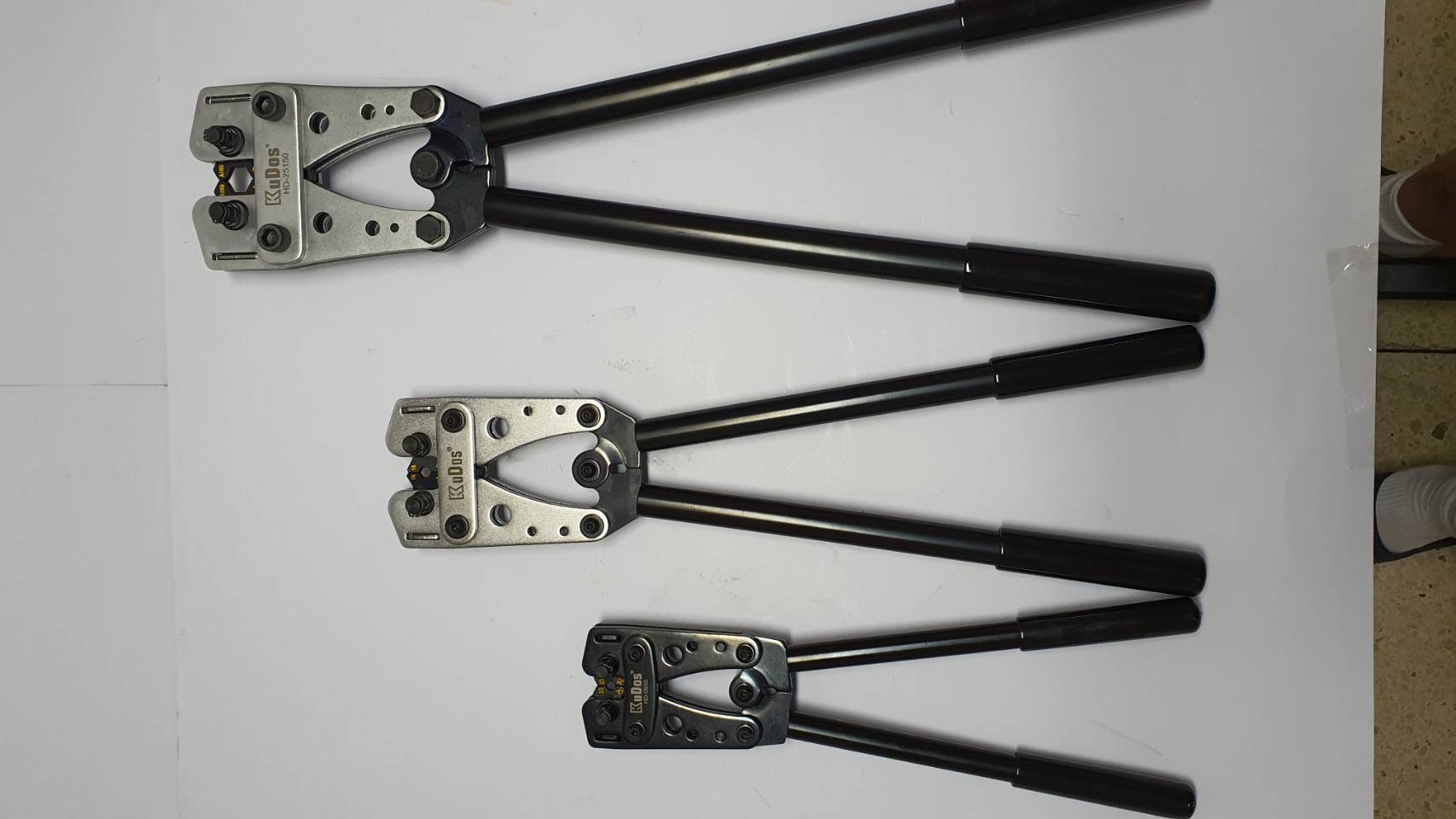

#HD-0650 คีมย้ำหางปลา

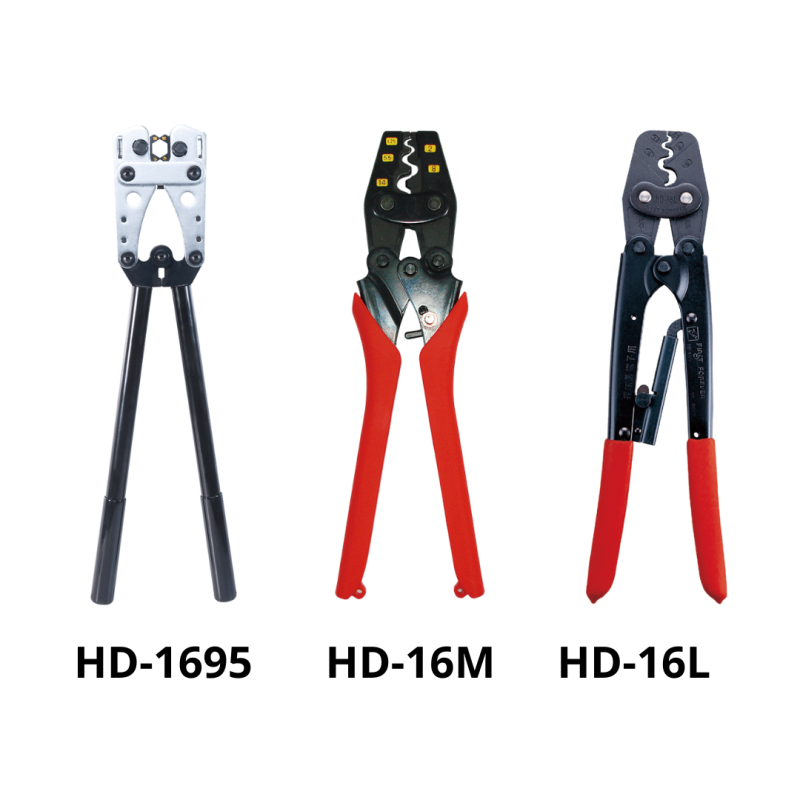

#HD-1695 คีมย้ำสายไฟ
#HD-06120 คีมย้ำสายไฟฟ้า
#HD-25150 Crimper tools
สินค้าคุณภาพ
Made In U.S.A.้้
| MODEL | Crimping cable lugs (sq/mm) |
Length (mm) |
Weight (kg) |
| HD-0650 | 6 - 25 | 390 | 1.10 |
| HD-1695 | 16 - 95 | 520 | 2.50 |
| HD-06120 | 6 - 120 | 650 | 4.0 |
| HD-25150 | 25 - 150 | 650 | 4.0 |
For non-insulated terminal 1.25,2.0,5.5,8,14 sq.mm.
Length : 245mm
Weight : 0.39 kgs

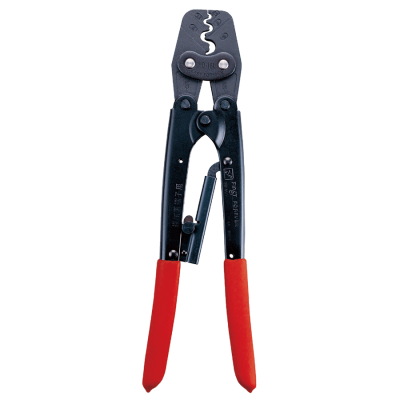

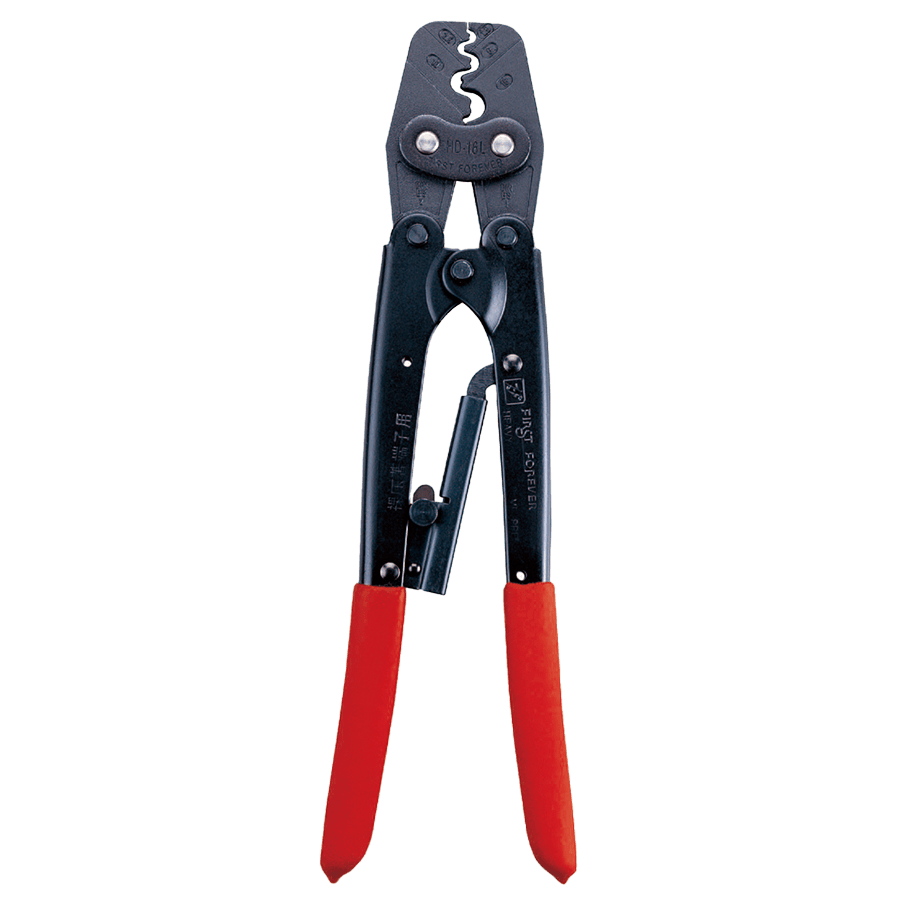

#HD-16L Ratchet control crimping tools
For non-insulated terminals 1.25-14 sq.mm.
For cable lugs from 1.5-16 sq.mm. AWG 22-6.
Length : 275 mm
Weight : 0.52 kgs

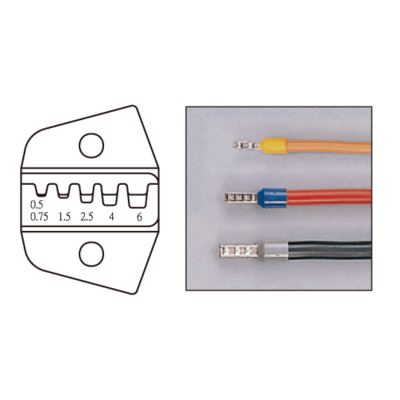

#CE-002 Die for HD-8" Frame
For cord end terminals from 0.5 to 6 sq. mm.
AWG 22-10.
Specifications
-Ratchet cable cutter
RCC-325 (Cu/Al 325 mm)
-RCC-325PH (Cu/Al 380 mm)
-RCC-500PH (Cu/Al 500 mm)
-Made in U.S.A.

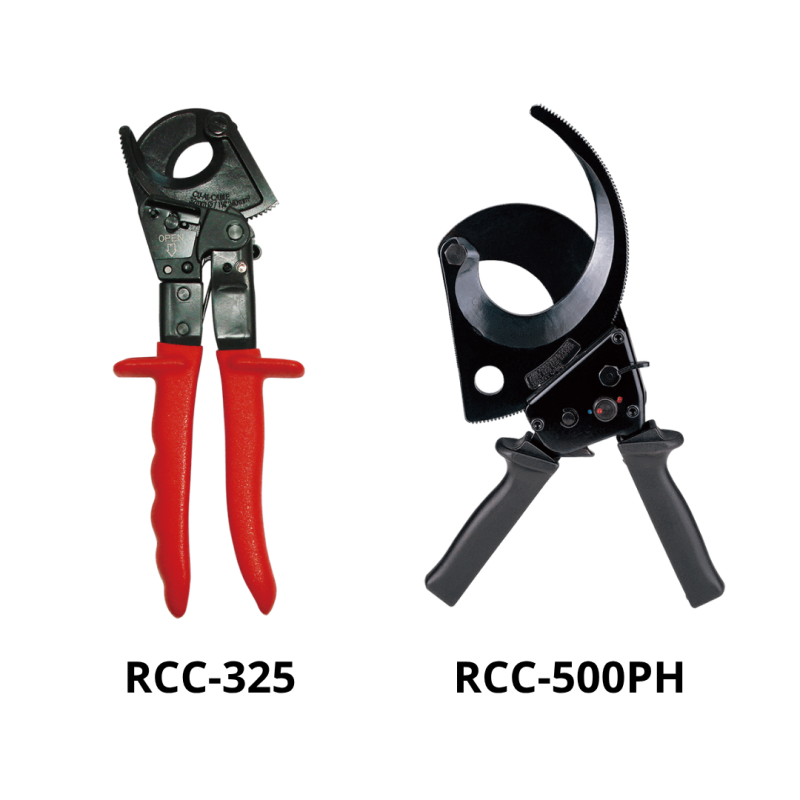

Ratchet cable Cutters
#RCC-325
-Cu/Al cable up to 325 sq.mm.
-AWG 600 MCM.
-Length : 250 mm
-Weight : 0.65 kgs
#RCC-325PH
-Cu/Al cable up to 380 sq.mm.
-AWG 750 MCM.
-Length : 290 mm
-Weight : 0.99 kgs

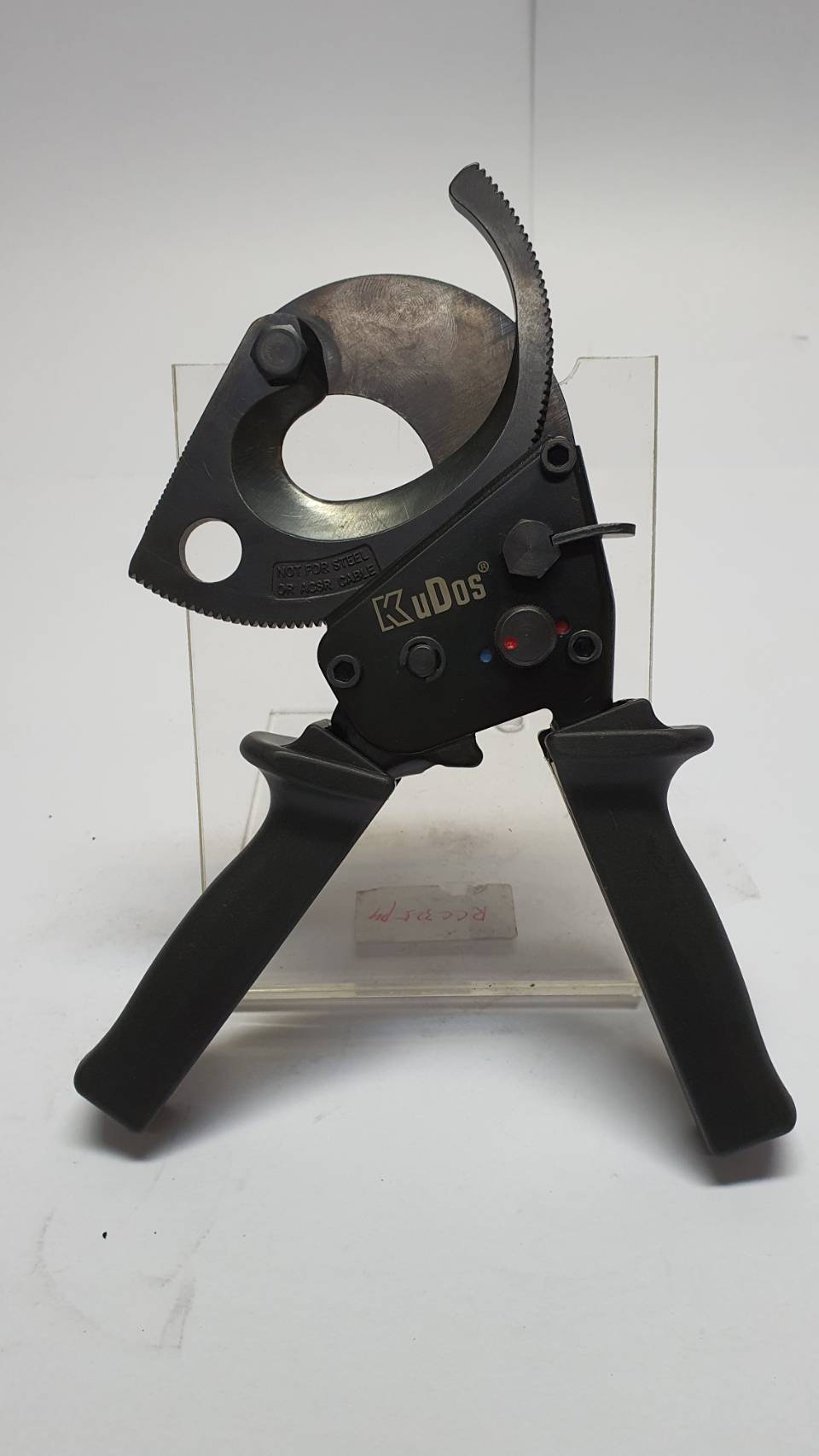

#RCC-500PH
-Cu/Al cable up to 500 sq.mm.
-AWG 1000 MCM.
-Length : 285 mm
-Weight : 0.85 kgs
-สินค้าคุณภาพ
Made In U.S.A.
Ratchet Cutters
-Cable Cutters (60-500 sq/mm)
-Rod & Wire cutters (5-9 mm)
-คีมตัดลวดสลิง (ของแข็ง 5-9 mm)
-คีมตัดสายไฟ (ของนิ่ม 60-500 mm)
Made in U.S.A.
คีมตัดสายไฟ (ปากนกแก้ว)
คีมตัดสายสลิง (ปากนกแก้ว)
-Cable Cutter Up to 500 mm
-Steel Rod & Wire Cutter Up to 150 mm
-Made in U.S.A.

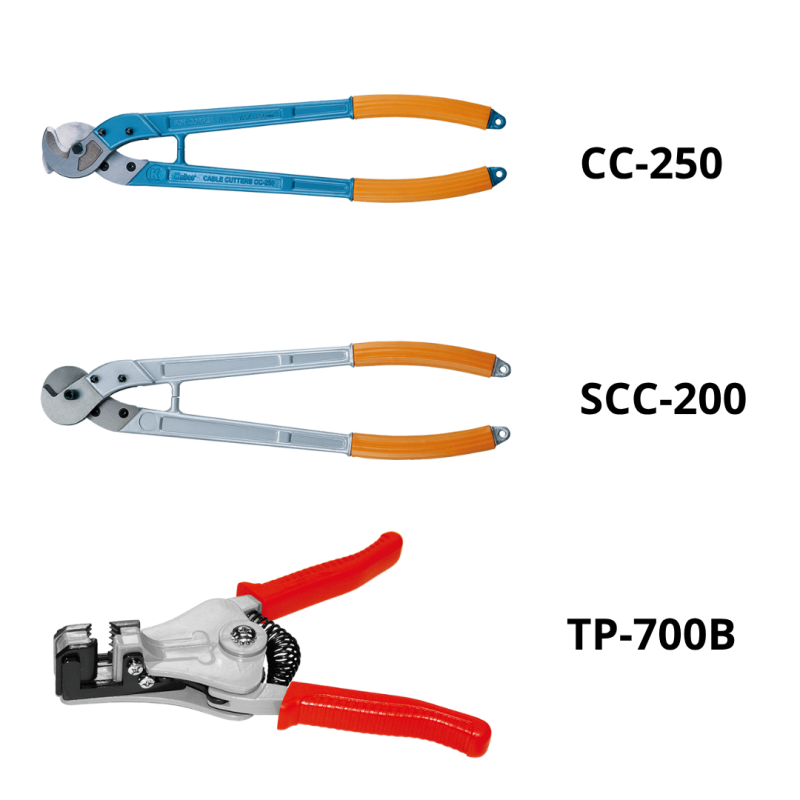

CABLE CUTTERS
| MODEL | Cu/Al cable (sq/mm) |
AWG | Length (mm) |
Weight (kg) |
| CC-60 | 60 | 1/0 | 235 | 0.38 |
| CC-80 | 80 | 3/0 | 320 | 0.73 |
| CC-250 | 250 | 500 MCM |
600 | 1.54 |
| CC-500 | 500 | 1000 MCM |
800 | 2.93 |

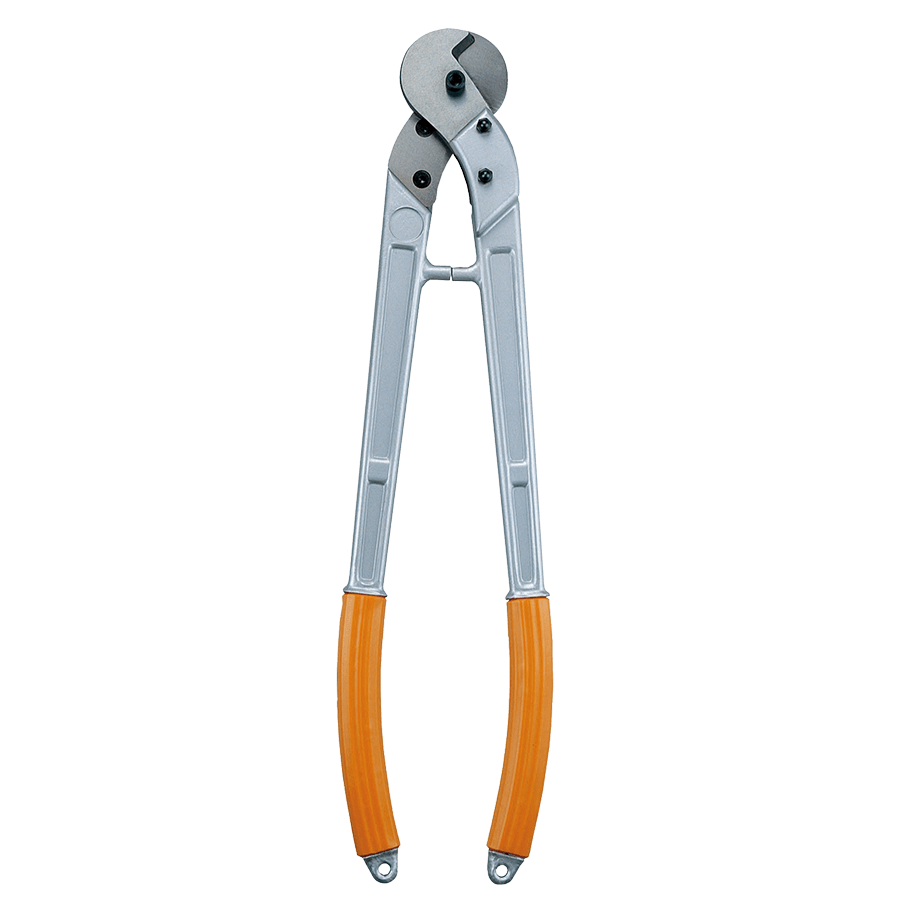

ROD & WIRE CUTTERS
| MODEL | Steel rod (mm) |
Wire rope (mm) |
Copper cable (sq/mm) |
Length (mm) |
| SCC-60 | 5 | 7 | 60 | 310 |
| SCC-200 | 9 | 12 | 150 | 600 |

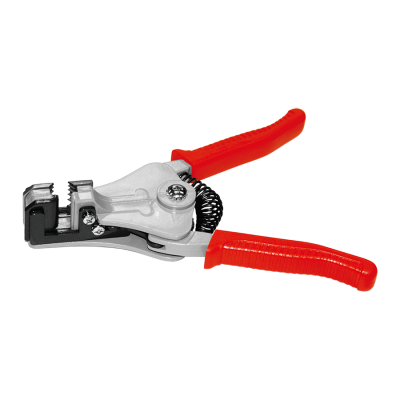

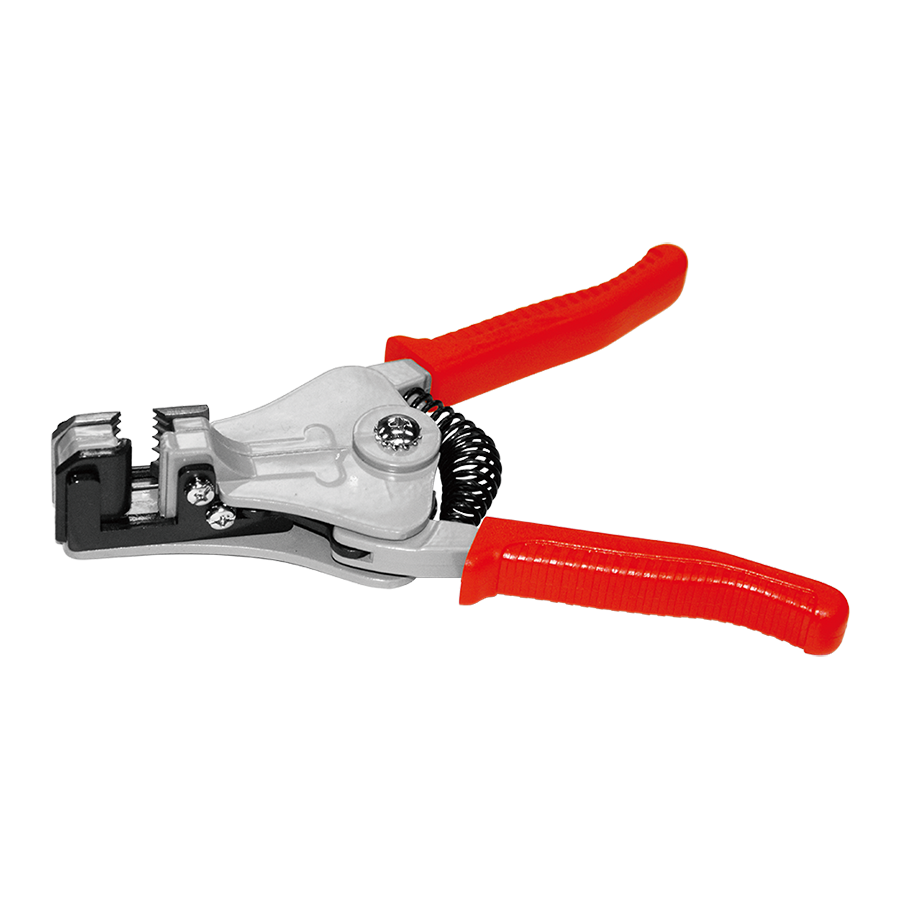

Automatic Wire Stripper
#TP-700A
For stripping wire AWG 10,12,14,16,20
Single wire -6,4,2.5,1.5,0.5ø mm
Multiple wires - 8,5.5,3.5,2,0.5 mm²
Length : 170 mm
Weight : 0.34 kgs
cable &wire rope cutters
