INDUCTION HEATER / Product / INDUCTION HEATER
INDUCTION HEATER

BASIC & SMART SERIES

NEW GENERATION-LOW FREQUENCY: (L.F.)
SMART-(SLF) & BASIC-(BLF) INDUCTION HEATERS


UNIT : mm

MODEL

MAX.
OD

MAX.
BEARING WEIGHT

MAX.
TEMP

MASS
(KG)

SLF 301

400

50 kg

240 0 C

21

SLF 302

500

100 kg

240 0 C

31

SLF 303

600

200 kg

240 0 C

52
BLF 200 240 20 240 0 C 21
BLF 201 400 50 240 0 C 21

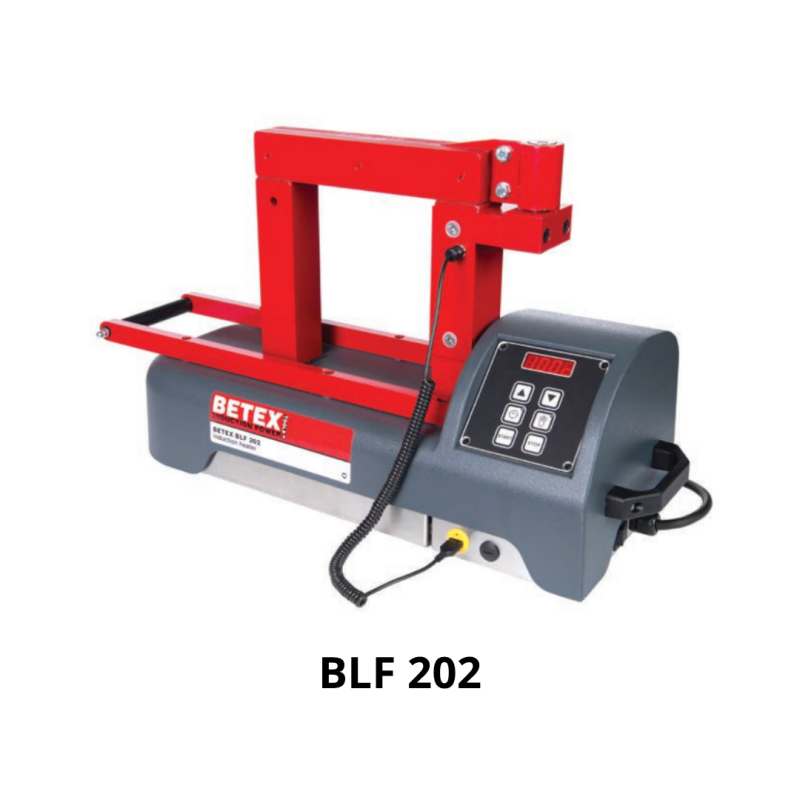

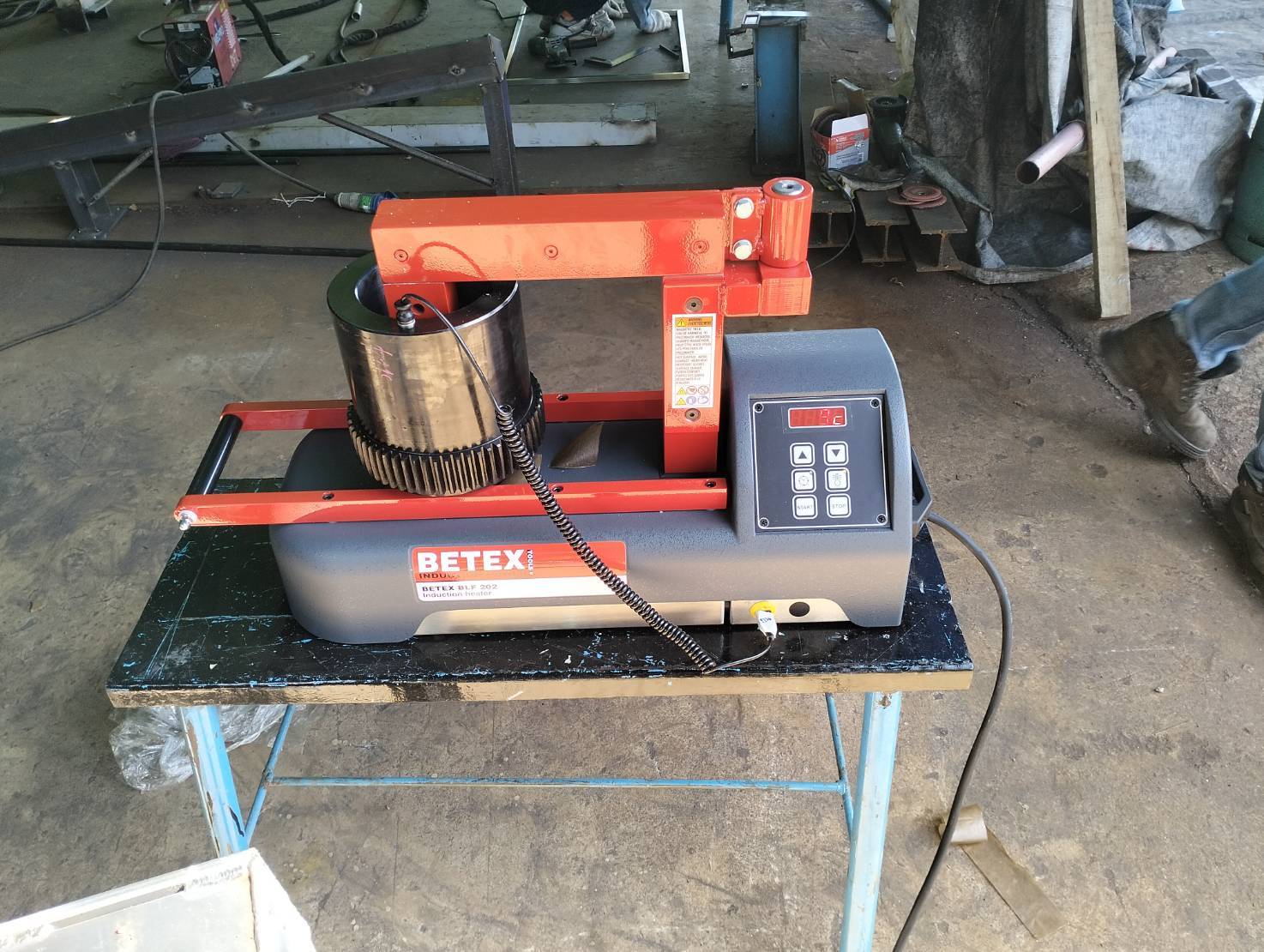

BLF 202 500 100 240 0 C 31
BLF 203 600 200 240 0 C 52




Specifications

INDUCTION HEATER-TURBO

LOW FREQUENCY (L.F.):
TURBO,
INDUCTION BEARING HEATER


 UNIT : mm

MODEL

MIN.
OD

MAX.
OD

MAX.
WIDTH

MAX.
BEARING WEIGHT

BETEX 38ESD

30

500

200

150 kg

BETEX 38ZFD

30

720

340

300 kg

BETEX 40RSD

30/160

790

315

350 kg

BETEX 40RMD

60/175

920

365

600 kg

 * TURBO VERSION

Specifications

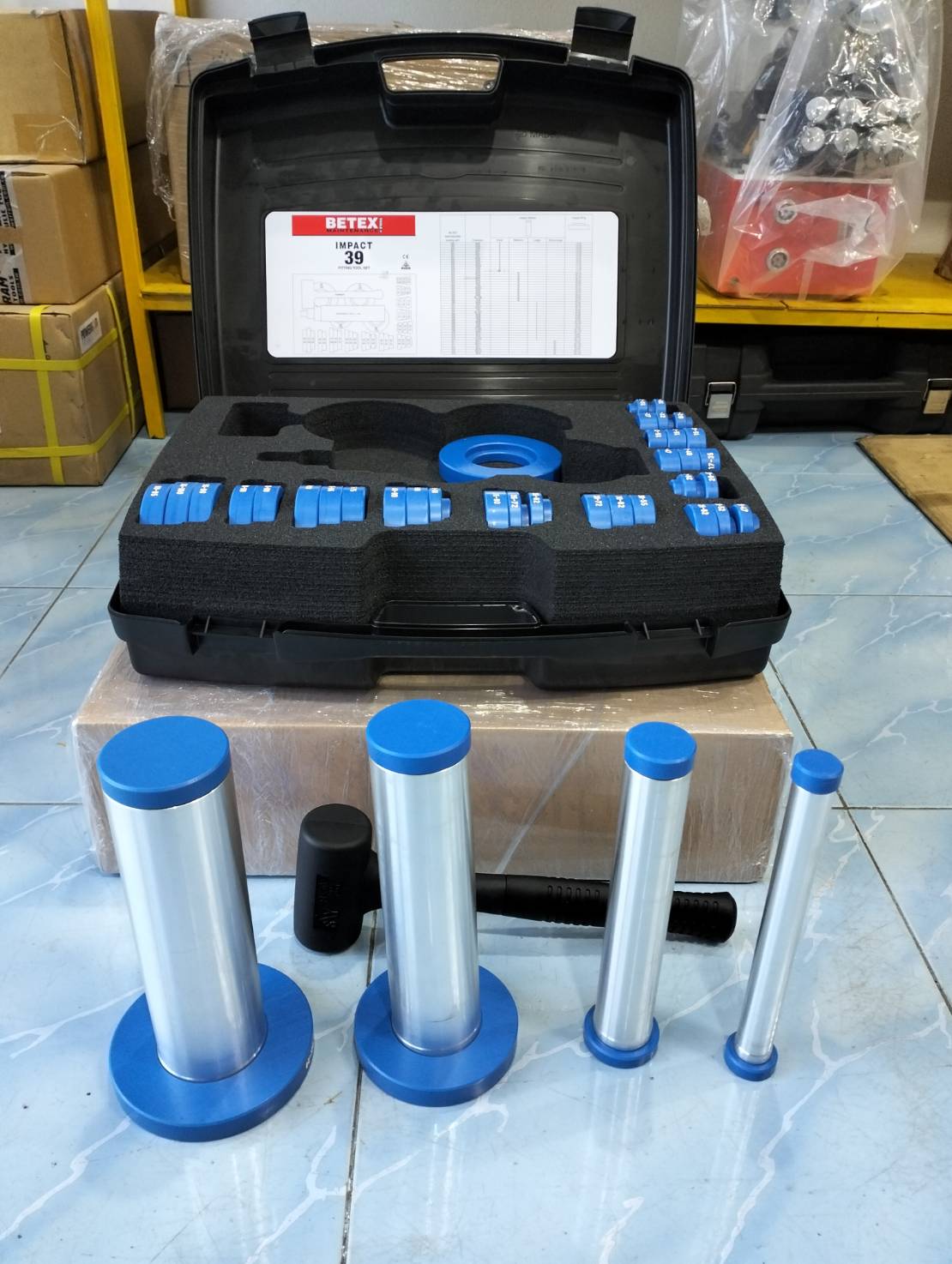

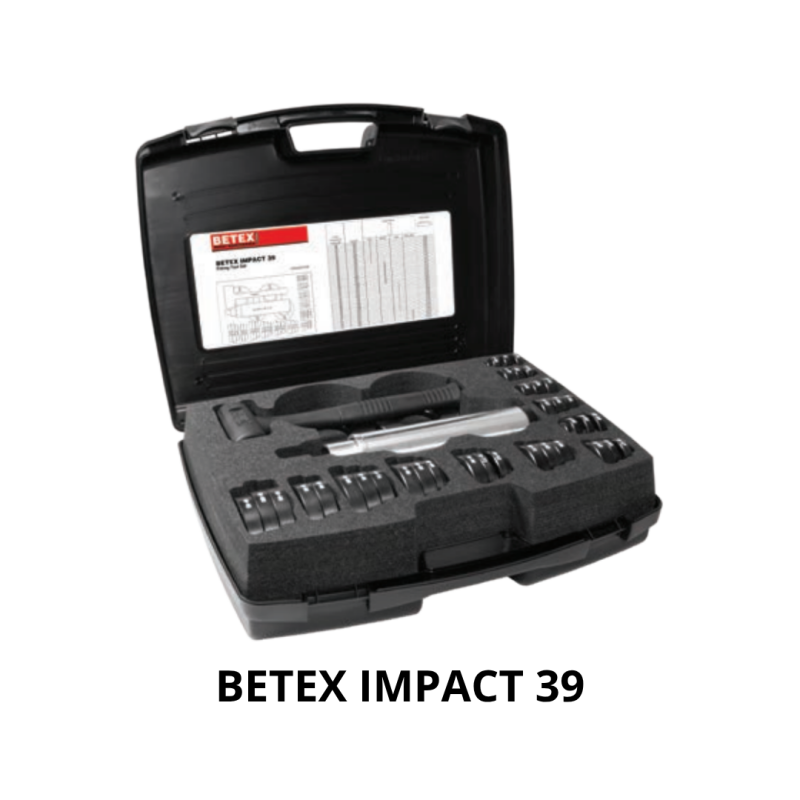

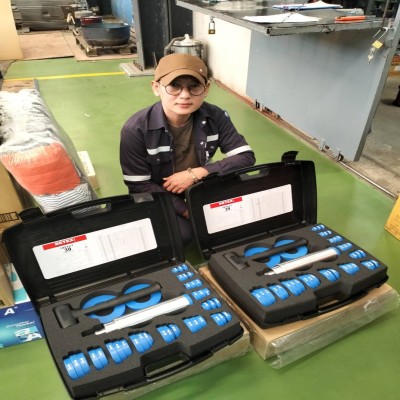

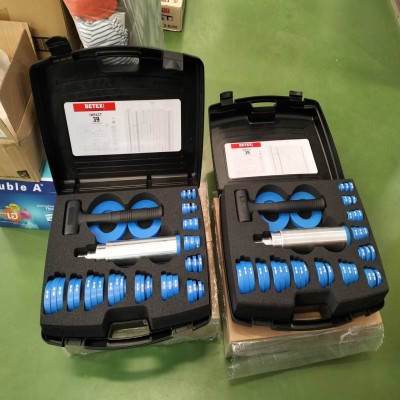

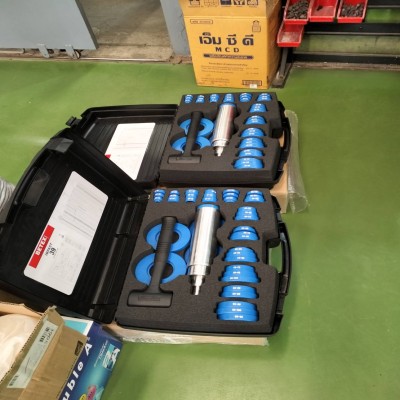

BETEX IMPACT 33 & 39

BEARING FITTING TOOL SETS


UNIT: mm

MODEL

33

39

COLLET BORE

10 - 50

10 - 60

COLLET O.D.

26 - 110

26 -  130

SLEEVE BORE

18, 32, 52

18, 32, 52, 62

WEIGHT

4.8 kg

6.5 kg



Specifications

INDUCTION HEATERS-Mounting & dismounting

MIDDLE FREQUENCY INDUCTION HEATERS (M.F.)


MF MODEL FOR MOUNTING & DISMOUNT
MODEL MF 3.0 /22 KW MF 3.0 /44 KX
MAX. TEMP 300 C 300 C
FORCE AIR COOLING YES YES
POWER 22 KW 44 KW
FREQUENCY REACH 10-25 kHz 10-25 kHz
VOLTAGE/AMP 400 V / 32A 400 V / 32A
FREQUENCY 50 Hz 50 Hz
TEMP MEASUREMENT TYPE K THERMOCOUPLE TYPE K THERMOCOUPLE
ACCURACY +/- 3, 5 C +/- 3, 5 C

Specifications
